APC AP7921B 1U 8 Outlet 230/208V 16A Rack Mount Power Distribution Unit

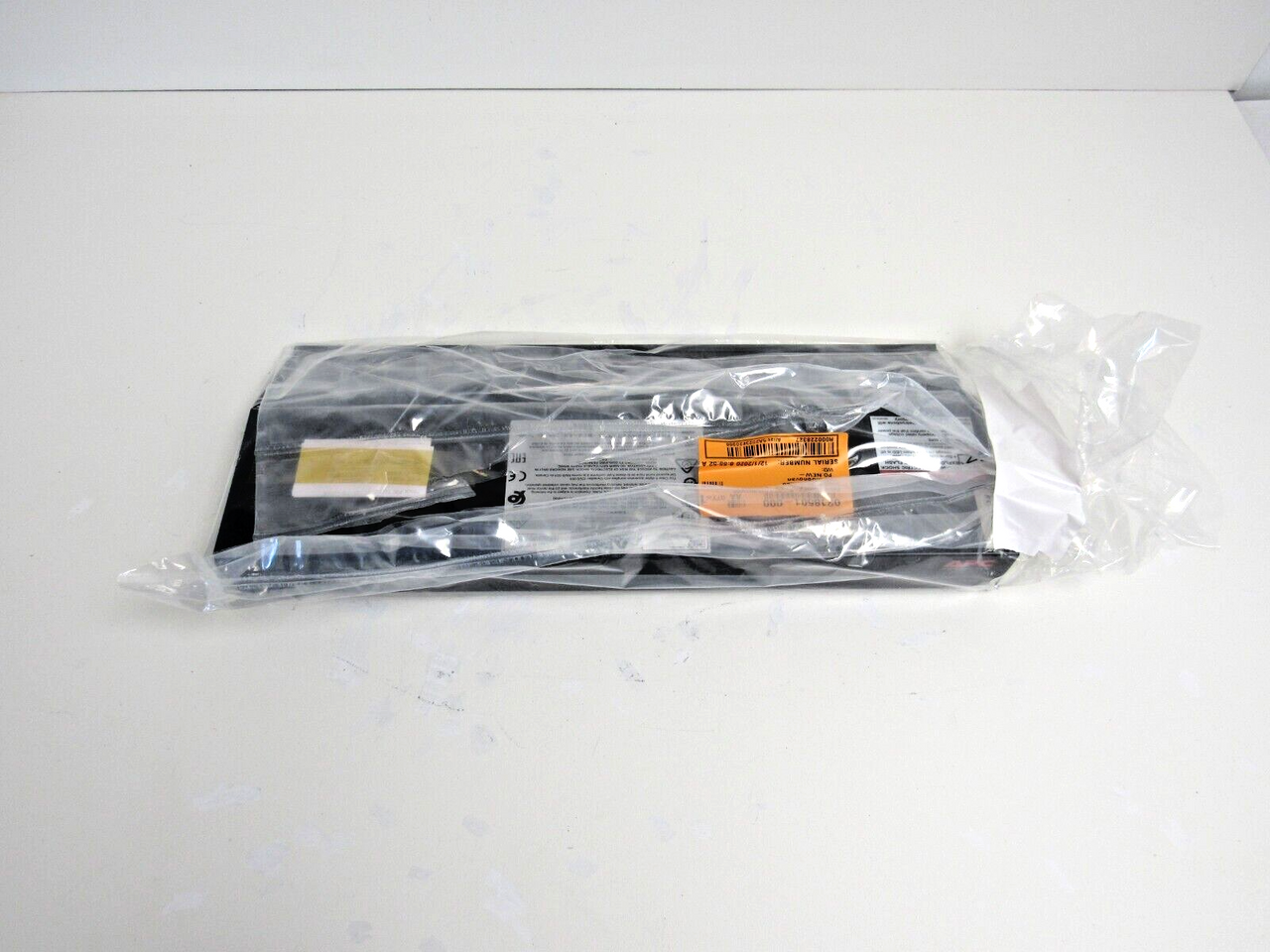

New not in OEM packaging. Kept in a clean working environment.



Overview
Presentation This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
Lead time Usually in Stock

Main
Colour Black
Product or component type PDU
PDU type Switched
Cord length 2.5 m
Number of cables 1
Provided equipment Installation guide
Rack mounting brackets
User manual

Complementary
Input Voltage 200 V
208 V
230 V
Height 4.4 cm
Width 44.5 cm
Output Voltage 208 V
230 V
Depth 10.8 cm
Net weight 2.27 kg
mounting location Front
Rear
Mounting preference No preference
Input Plug Type IEC 60320 C20
mounting mode Rack-mounted
Rack units 1U
mounting position Horizontal
[In] rated current 16 A
Permissible voltage 200...240 V
Input current limits 20 A
Load capacity 3680 VA
Network frequency 50/60 Hz
Outlet type and quantity 8 IEC 60320 C13

Environment
product certifications cUL listed
CE
CSA
GOST
IRAM
MIC
UL listed
VDE
VCCI
Standards EN 55022 class A
EN 55024
EN 61000-3-2
EN 61000-3-3
UL 60950
Ambient air temperature for operation 0...45 °C
Relative humidity 0...95 %
Operating altitude 0...10000 ft
Ambient air temperature for storage -25...65 °C
Storage Relative Humidity 0...95 %
Storage altitude 0.0000000000...15240.0000000000 m

Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7 cm
Package 1 Width 34.3 cm
Package 1 Length 47 cm
Package 1 Weight 3.45 kg

Contractual warranty
Warranty 2 years repair or replace
