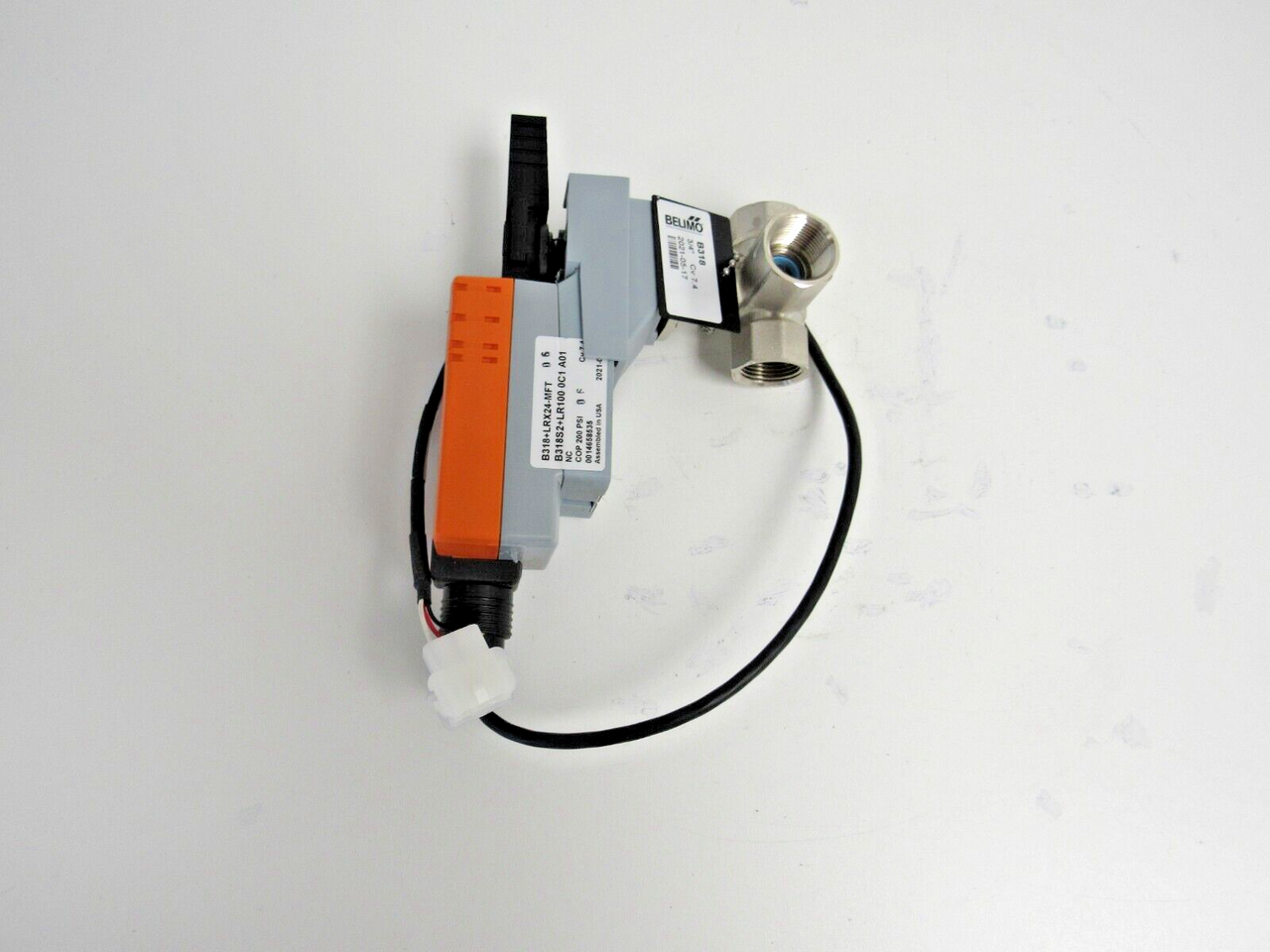

Belimo LRX24-MFT : Configurable Non Fail-Safe Valve Actuator, AC/DC 24 V, 2...10V, MFT/programmable Control Signal, 5-Year Warranty

Specifications

Voltage AC/DC AC/DC 24 V
Power Consumption (Running) 2.5 W
Power Consumption (Holding) 1.2 W
Power Consumption For Wire Sizing 5 VA
Control Type MFT/Programmable
Direction Of Motion Motor selectable with switch 0/1
Manual Override External push button
Angle of Rotation 90
Running Time (Motor) 150 s / 90°
Running Time range (Motor) 35...150 s
Protection category IP54
Degree Of Protection NEMA NEMA 2
Enclosure Type UL Enclosure Type 2
