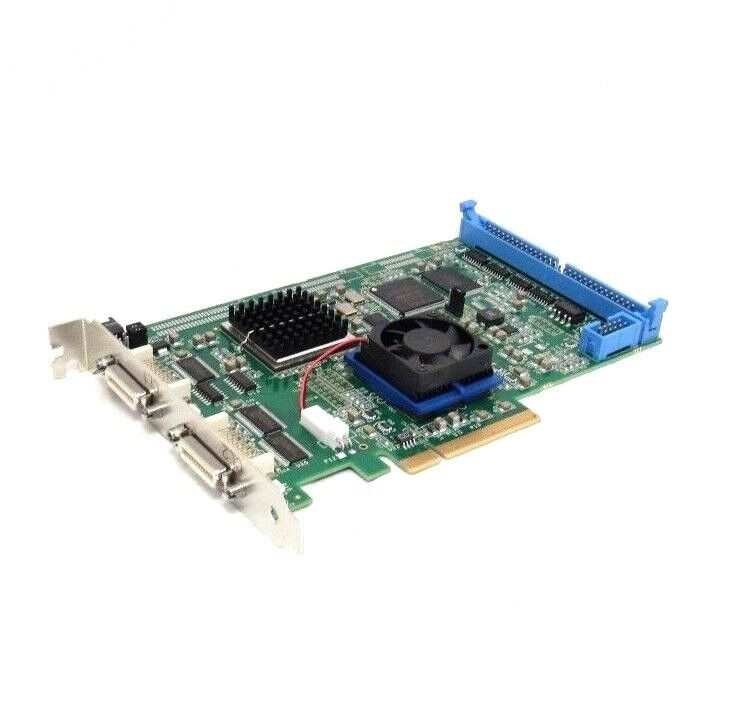

BitFlow KBN-CL4-4.0-SP Karbon-CL4-SP Frame Grabber PCI-Express x8.

Four digit serial number will vary from pictured product.

Karbon-CL4-SP is a special version of the Karbon-CL designed to handle the latest 80-bit 85 MHz cameras. "SP" model can still acquire from any base, medium or full CL camera made today.

Specifications:

* Half-Size x8 PCI Express Board
* Up to 80 bits input at 85 MHz
* Acquire from one Base/Medium/Full/80-bit CL cameras
* FlowThru technology eliminates the need for on-board frame buffers, even with the fastest cameras
* Multi-tap cameras rasterized on the fly
* Highly configurable acquisition engine
* DMA at burst rates up to 2.0 GB/S
* Supports images up to 256K x 128K
* No frame rate limit
* Quadrature encoder support including sophisticated triggering schemes
* Encoder divider/multiplier
* On board timing generator supports high-resolution exposure control
* Independent trigger and encoder inputs for each camera
* Independent CCs outputs for each camera
* General purpose I/O
* MDR Camera Link connectors
* Supported by the BitFlow SDK on 32 and 64-bit Windows
* Acquire image sequences well beyond the 4 GB barrier
* Drivers, utilities and examples for Windows and Linux
* RoHS Complaint
