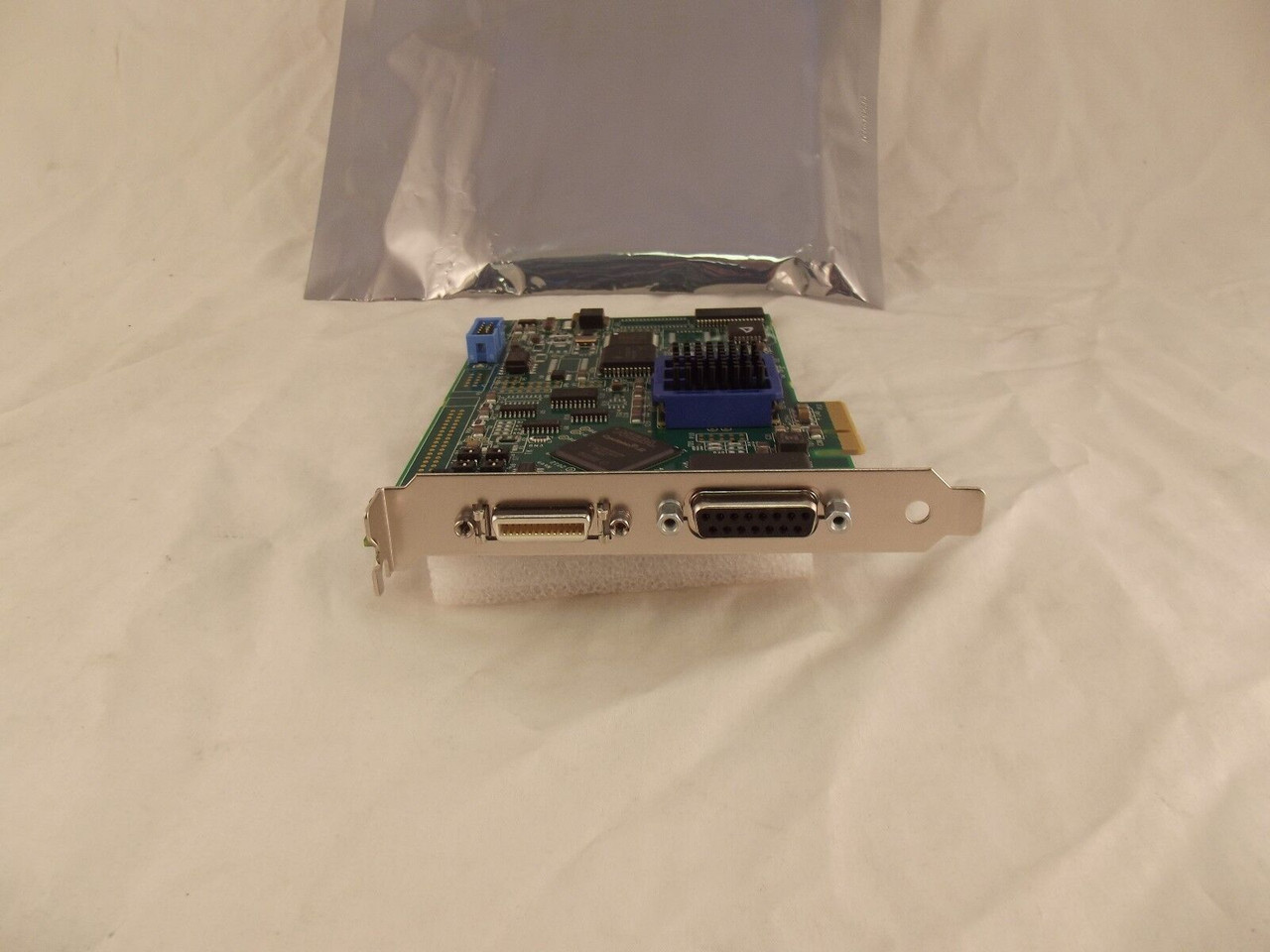

Simplify your industrial or semiconductor imaging application with BitFlow's new Neon-CL, the world's first Power over Camera Link (PoCL) frame grabber. PoCL is the new Camera Link (CL) standard for providing power to the camera over the CL cable. With the Neon-CL, Camera Link now supports simple, one-cable installations while providing data rates up to 255 megabytes per second! The Neon-CL is designed for the OEM that needs the performance of the PCI Express bus, BitFlow's famous industrial quality, and one of the lowest price points in the industry. The Neon-CL can acquire from all Base CL cameras and has enough industrial I/O to handle even the most complicated synchronization tasks. Adding the Neon-CL to your application is simple with our SDK, which supports both 32-bit and 64-bit operating systems. The SDK provides high level APIs for sophisticated buffer management and low-level direct access to the board for speedy custom control. If you need the simplest, most reliable, and best performing PoCL frame grabber, call BitFlow today to get our OEM-priced Neon-CL, BitFlow's 4th generation of robust, industrial CL imaging products.

Specifications
Product Category
Frame Grabbers
Color / Mono
Monochrome; Color
Analog / Digital
Digital camera inputs
Digital Input Pixel Depth
24 bits
Acquisition Formats
Non-standard/Other
Acquisition Features
Trigger Input; High resolution cameras; Line scan capture
Video Inputs
1
Features
Hardware image processor; Accepts video timing signals; Generates video timing signals
Computer Bus Interface
PCI Express
