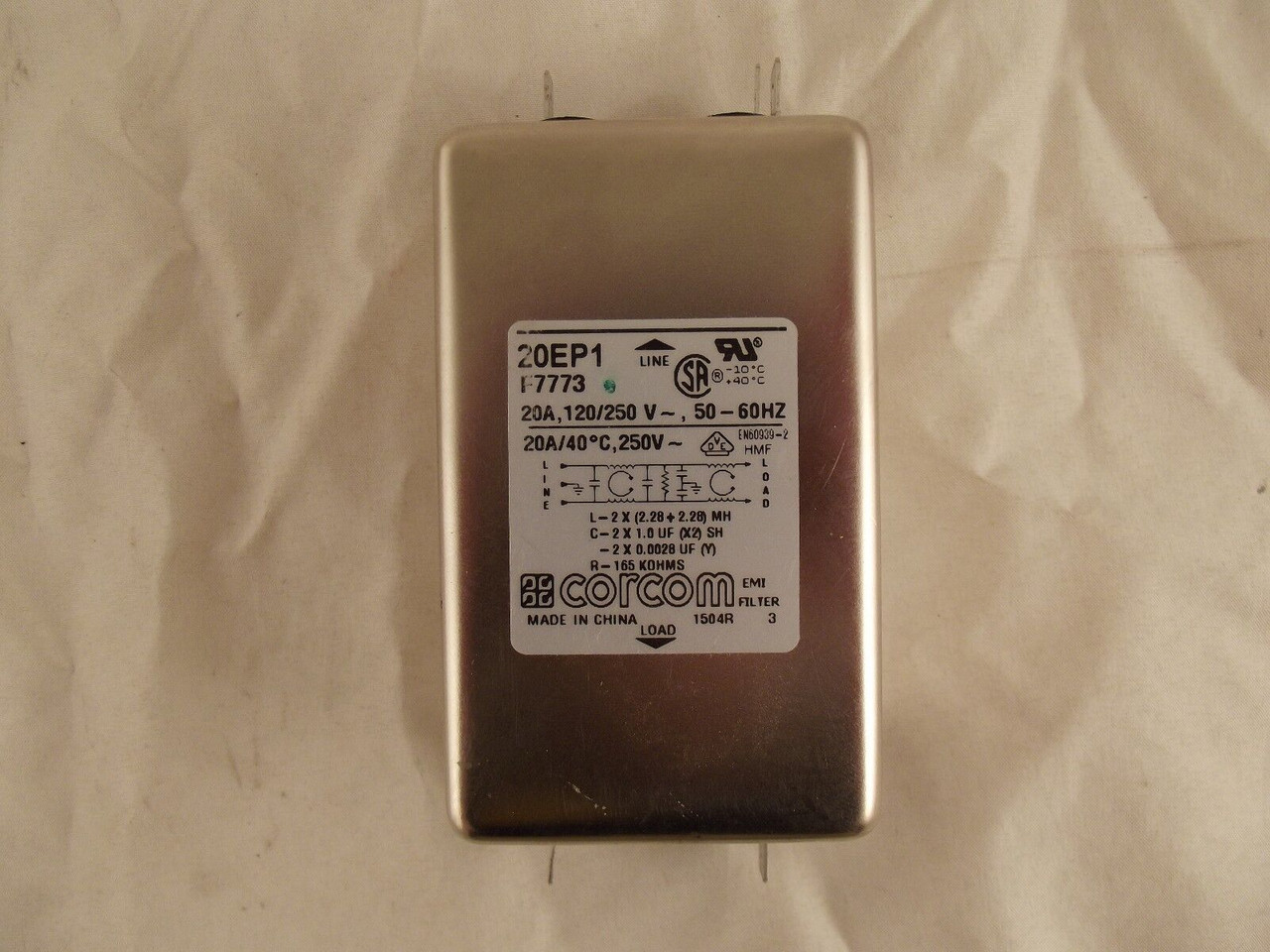

Corcom 20EP1 F7773 RFI 50Hz/60Hz 20A 250VAC Power Line Filter 17-3

$44.05

Corcom 20EP1 F7773 RFI 50Hz/60Hz 20A 250VAC Power Line Filter 17-3

$44.05
SKU:
20EP1
Current Stock:
1
Quantity:
Share

Product Description

Corcom 20EP1 F7773 RFI 50Hz/60Hz 20A 250VAC Power Line Filter
Good Condition

Dual stage filter offers high insertion loss
• Well suited for meeting CISPR 22 A and FCC Part 15J, Class B
• EP model meets very low leakage current requirements
• 7A and 12A versions offer optimum package size

Maximum leakage current each Line to Ground: VP Models EP Models @ 120 VAC 60 Hz: .73 mA .21 mA @250 VAC 50 Hz: 1.27 mA .36 mA Hipot rating (one minute): Line to Ground: 2250 VDC Line to Line: 1450 VDC Rated Voltage (max): 250 VAC Operating Frequency: 50/60 Hz Rated Current: 3 to 20A Operating Ambient Temperature Range (at rated current Ir): -10°C to +40°C In an ambient temperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir (85-Ta)/45

RZ
