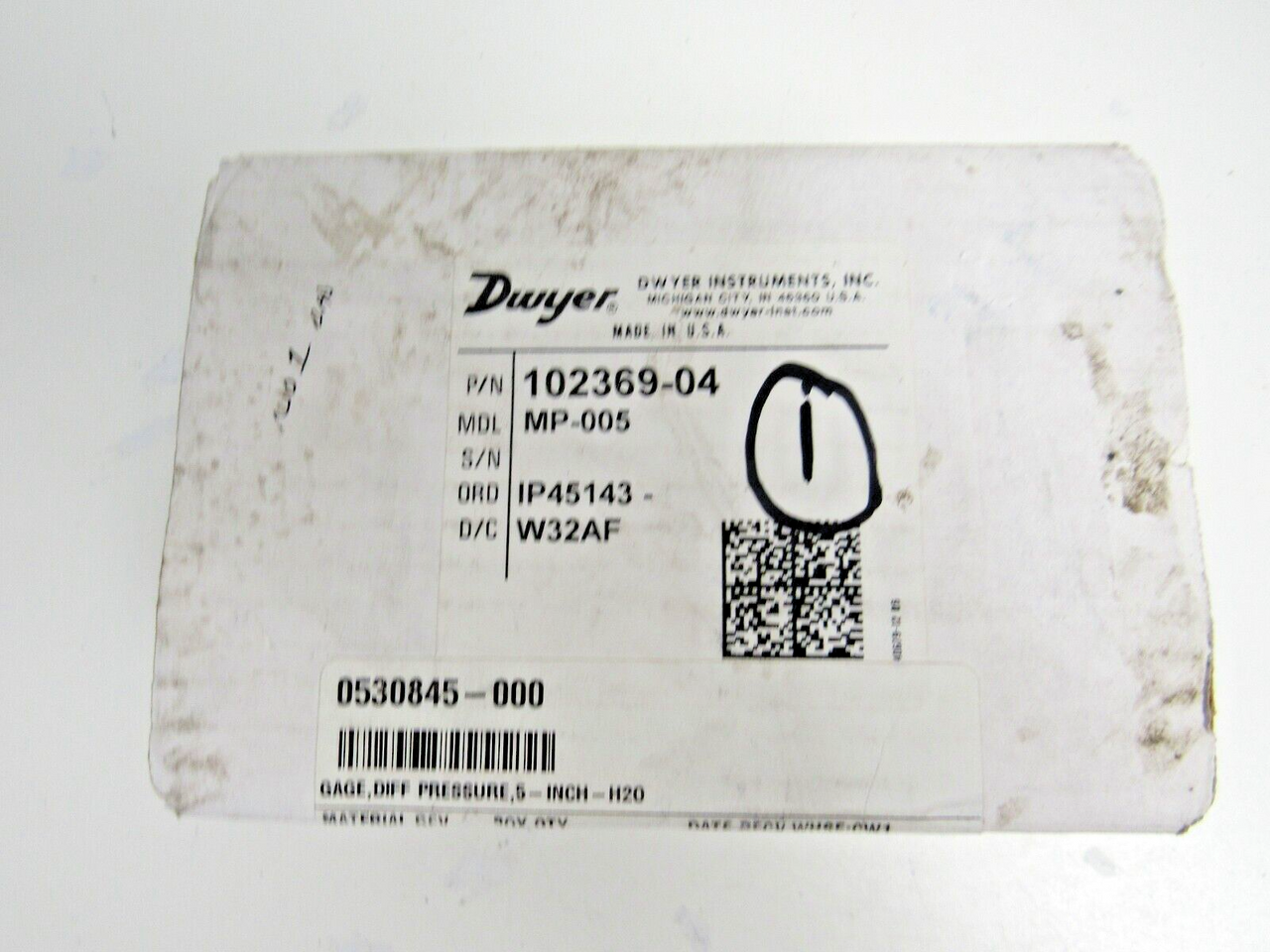

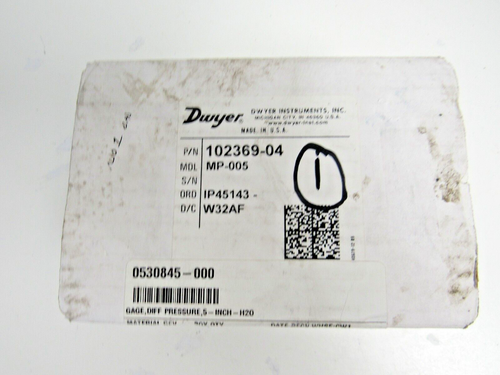

Dwyer MP-005 Mini-Photohelic® is a versatile and accurate differential pressure switch/gauge. With a temperature range of 20 to 120°F and an accuracy of ±5% FS @ 70°F, it is ideal for air and non-combustible gas applications. The switch features (2) SPDT relays and push-button set point adjustment. It operates with a 24 VDC / 24 VAC power requirement and has screw terminals for easy electrical connections. The compact design measures 4-1/8" depth x 3-1/16" diameter and includes standard accessories for mounting.

Specifications
Manufacturer Dwyer
(Instrument-Sensor) Measurement Accuracy 5%
(Instrument-Sensor) Type Miniature
(Instrument-Sensor) Application Air and Non-Combustible Compatible Gases
(Instrument-Sensor) Supply Voltage 24 VAC/VDC
Component Differential Pressure Switch
(Instrument-Sensor) Temperature Range 20 - 120°F/-6.7 - 49°C
