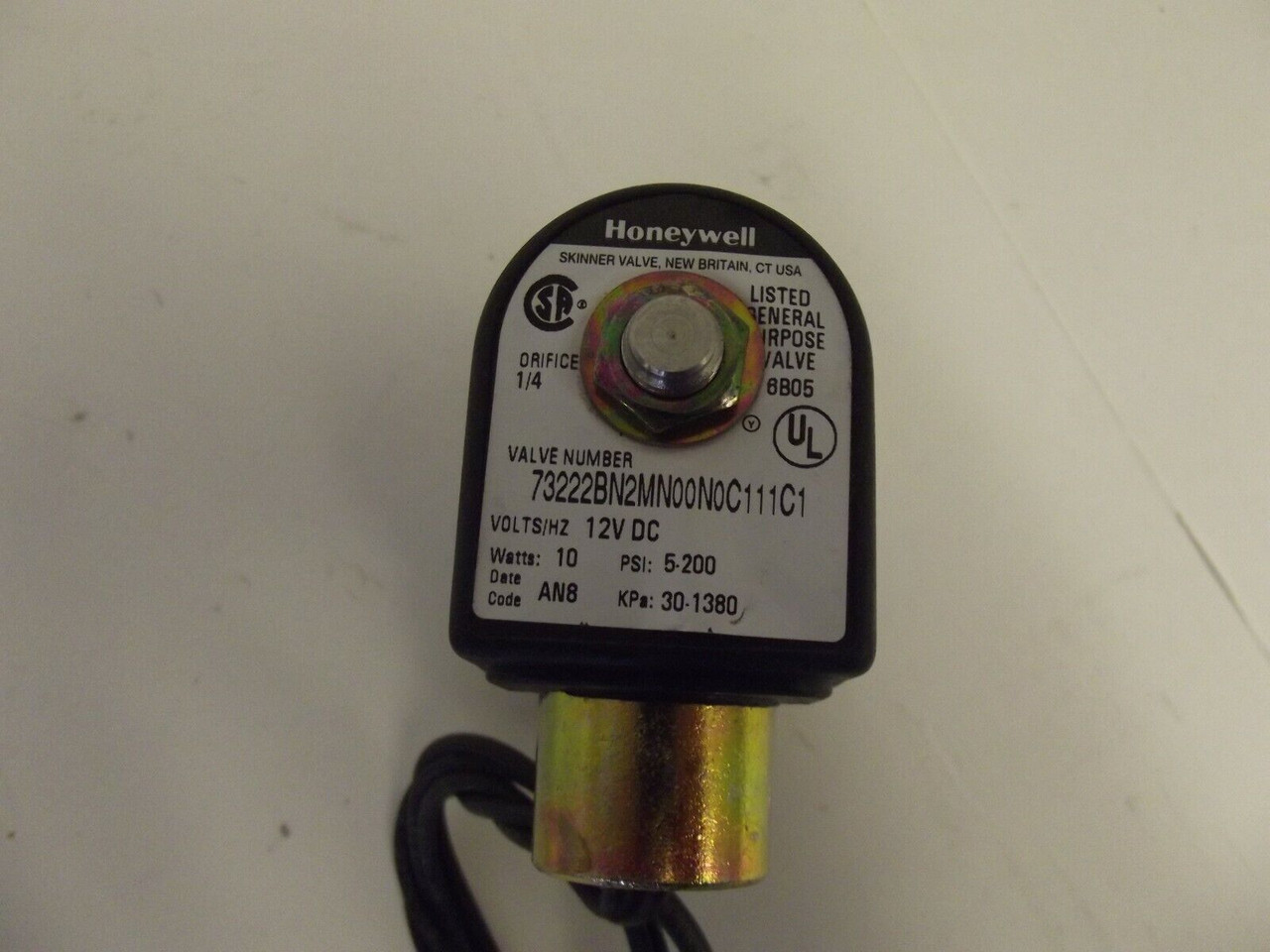

Parker Honeywell 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves ' #73222BN2MN00N0C111C1 New Was a Spare Never in Service.


Technical Specifications

* Voltage (V):12 VDC
* Seal Material:NBR
* Orifice 1 Size (inch):7/16
* Flow Factor 1 (Cv):0.76
* Power (Watts):10 Watt (DC)
* Coil Type:1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
* Maximum Pressure Differential (psi):200 psi (DC)
* Product Series:7000 Series
* Valve Type:2-Way
* Function:Normally Open
* Port Size:1/4 inch
* Input Voltage:12 VDC
* Body Material:Brass
* Seal Material:NBR
* Orifice 1 Size:7/16 inch
* Flow Coefficient 1:0.76 Cv
* Power Consumption:10 Watt (DC) W
* Coil Type:1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
* Maximum Pressure Differential:200 psi (DC) psi
* Number of Ports:2
* Actuation Type:Manual/Mech. Operated
* Media:General Purpose for Air, Liquids and Gases
* Port Type:NPT
* Orifice 2 Size:n/a
* Flow Coefficient 2:n/a
* Minimum Pressure Differential:5 psi
* Minimum Fluid Temperature:0 °F
* Maximum Fluid Temperature:185 °F
* Coil Specifications Met:NEMA 4X

-------------------------------

Item Information

Parker's 2-Way Normally Open 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.

Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
