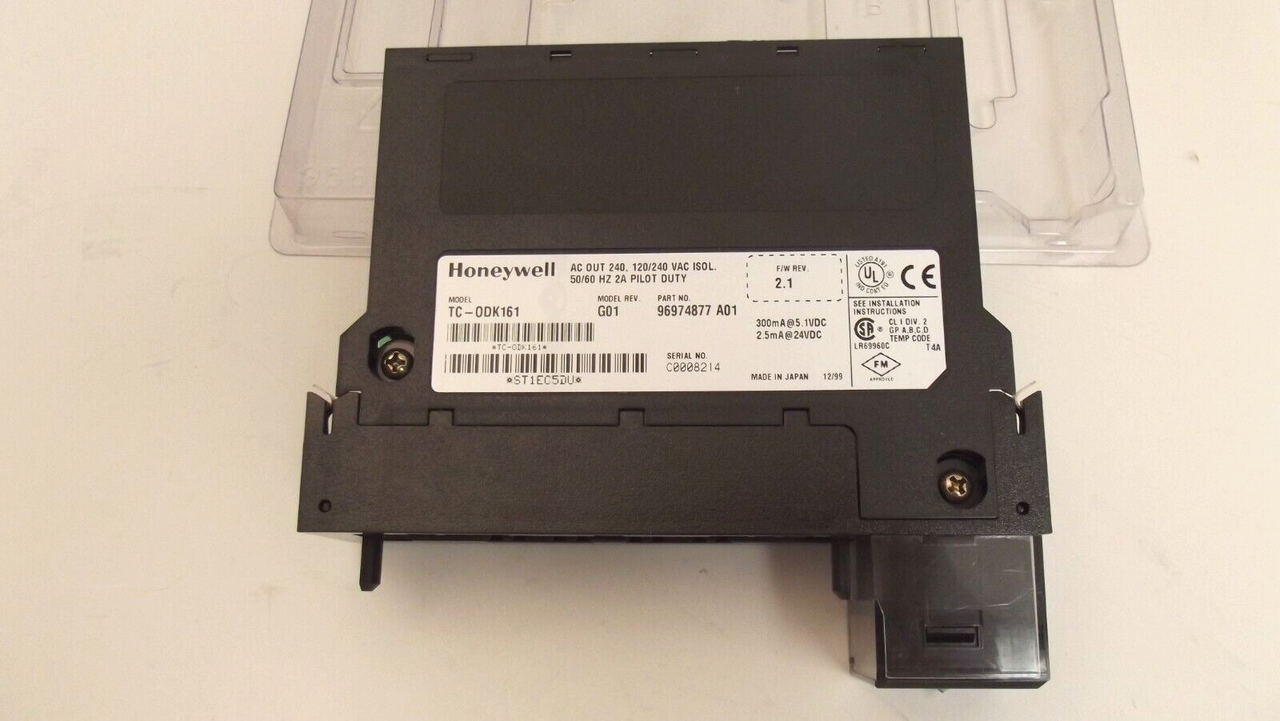

Manufacturer: Honeywell

*

Product Number: TK-ODK161

*

Product Type: AC Output

*

Outputs per Module: 16 (individually isolated)

*

Output Voltage Range: 74-265 VAC, 47-63 Hz

*

Output Current Rating:

**

Per Point: 2.0 A max @ 30°C & 2.0 A max @ 60°C

**

Per Module: 5.0 A max @ 30°C & 4.0 A max @ 60°C

*

Surge Current: 20 A for 43 ms each, repeatable every 2 sec @ 60°C

*

On-State Current (Minimum): 10 mA per output

*

On-State Voltage Drop (Maximum): 1.5 Vrms @ 2.0 A, 6.0 Vrms @ I < 50 mA

*

Maximum Inhibit Voltage (zero crossing): 60 V peak

*

Off-State Leakage Current (Maximum): 3 mA per point

*

Output Signal Delay (Off to On / On to Off): 9.3 ms @ 60 Hz; 11 ms @ 50 Hz

*

Power Dissipation: 9.6 W max

*

Backplane Current:

**

Current draw @ 24vdc (amps): 0.002

**

Current draw @ 5vdc (amps): 0.300

*

Isolation Voltage:

**

Channel to channel: 100% tested at 2546 VDC for 1s

**

User to system: 100% tested at 2546 VDC for 1s

*

Connection Terminal Blocks: TC-TBCH, 36-position terminal block
