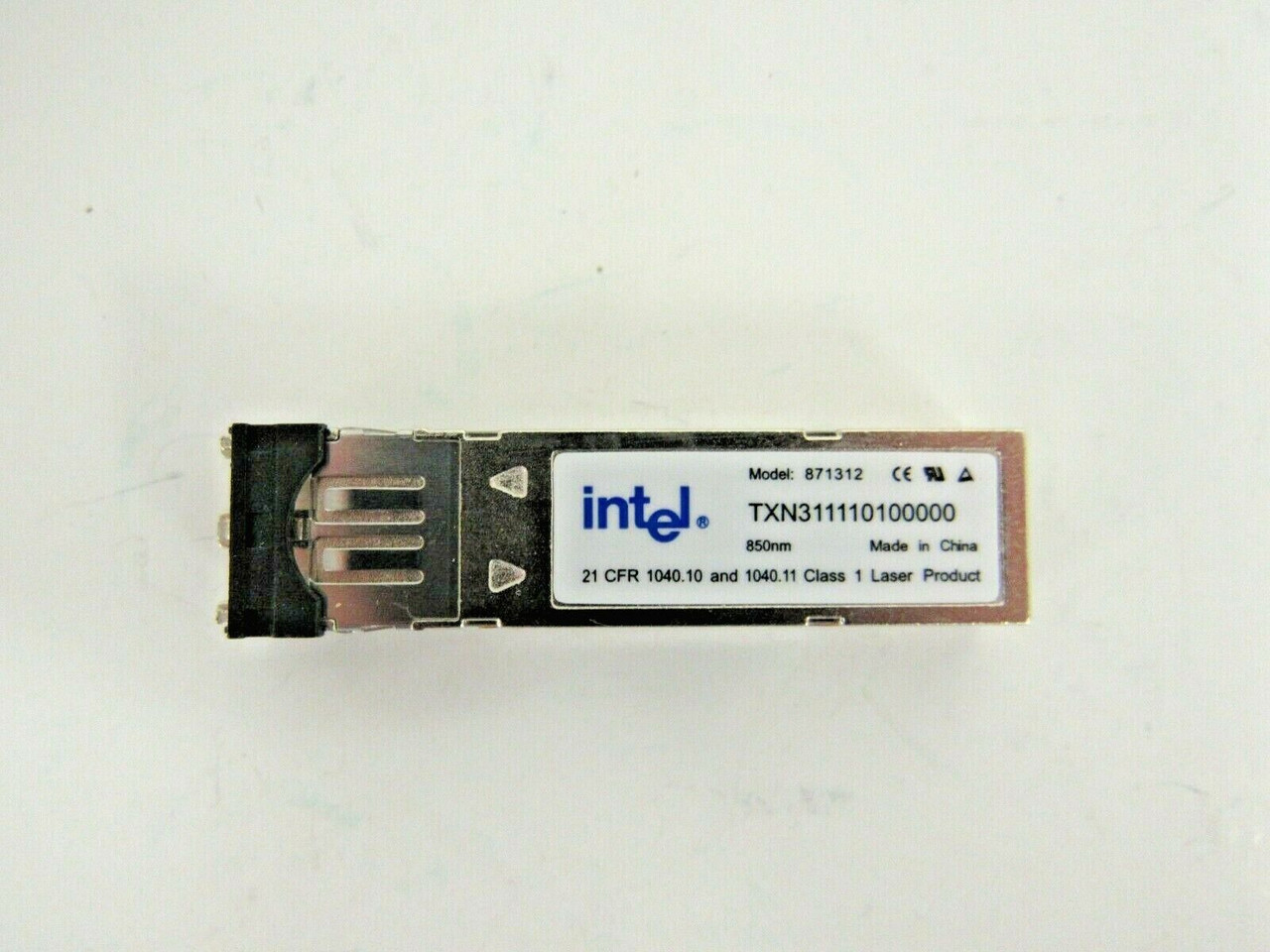

Intel TXN311110100000 2GB 850nm Multi-Mode Fiber LC Connector

Transceiver module is in good cosmetic condition. Kept in a clean environment. Displays signs of normal wear and tear. Pulled from a working environment.


Model

Brand Intel
Model 871312
P/N TXN311110100000


Specifications

Fiber Type 50/125, 62.5/125, MMF
Communication Standard GBE, OC-3, OC-12, OC-48, SONET
Connection Type LC Connector
Data Rate (Rx) 2500.0 Mbps
Data Rate (Tx) 2500.0 Mbps
Operating Wavelength-Nom 850.0 nm
Operating Wavelength-Min 770.0 nm
Operating Wavelength-Max 860.0 nm
Optical Power Output-Nom 0.316 mW
Return Loss-Min 12.0 dB
Sensitivity -20.0 dBm
Supply Voltage-Nom 3.3 V
