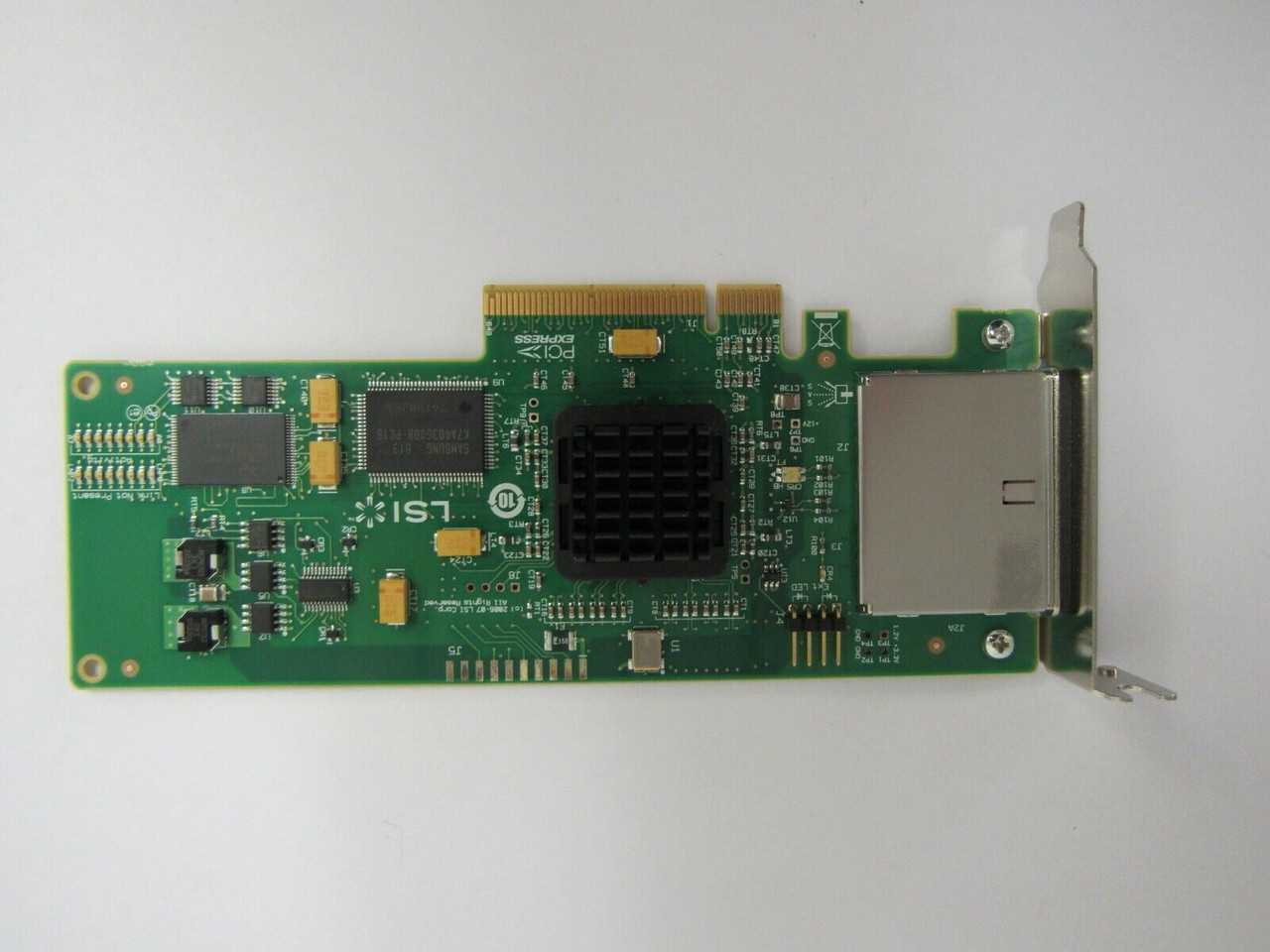

LSI Logic SAS3801E 8-Port SAS PCI-E 3Gbs Host Bus Adapter

Item is in excellent cosmetic condition.
Pulled from a clean working environment.

Product Features and Specifications:
The LSI SAS3801E card enables large-scale direct attach storage (DAS) arrays through eight external 3 Gb/s mini-SAS ports, driving up to 244 SAS and SATA devices. This host bus adapter supports large capacity external server storage RAID and non-RAID enclosures by a PCI Express bus with two external x4 SFF-8088 mini-SAS connectors.
• 3 Gb/s per port
• Two x4 external miniSAS connectors (SFF-8088)
• Low-profile HBA (PCI Express form factor)
• Connects to both SAS and SATA HDDs and tape drives
• Allows more than 244 total end-point devices
• Fusion-MPT architecture providing over 140,000 I/Os per second
• Supports all major operating systems

GENERAL

*
Host Bus
PCIe x8
*
Manufacturer
LSI Logic

STORAGE CONTROLLER

*
Interface
SATA 3Gb/s / SAS
*
Data Transfer Rate
3 Gbps
*
Supported Devices
hard drive, tape drive
*
Max Storage Devices Qty
244
*
Processor
LSI LSISAS1068E
*
Interface Type
Serial ATA-300 / SAS

POWER DEVICE

*
Type
none

INTERFACE PROVIDED

*
Qty
2
*
Connector Type
26 pin 4x Shielded Mini MultiLane SAS (SFF-8088)
*
Connector Location
external
