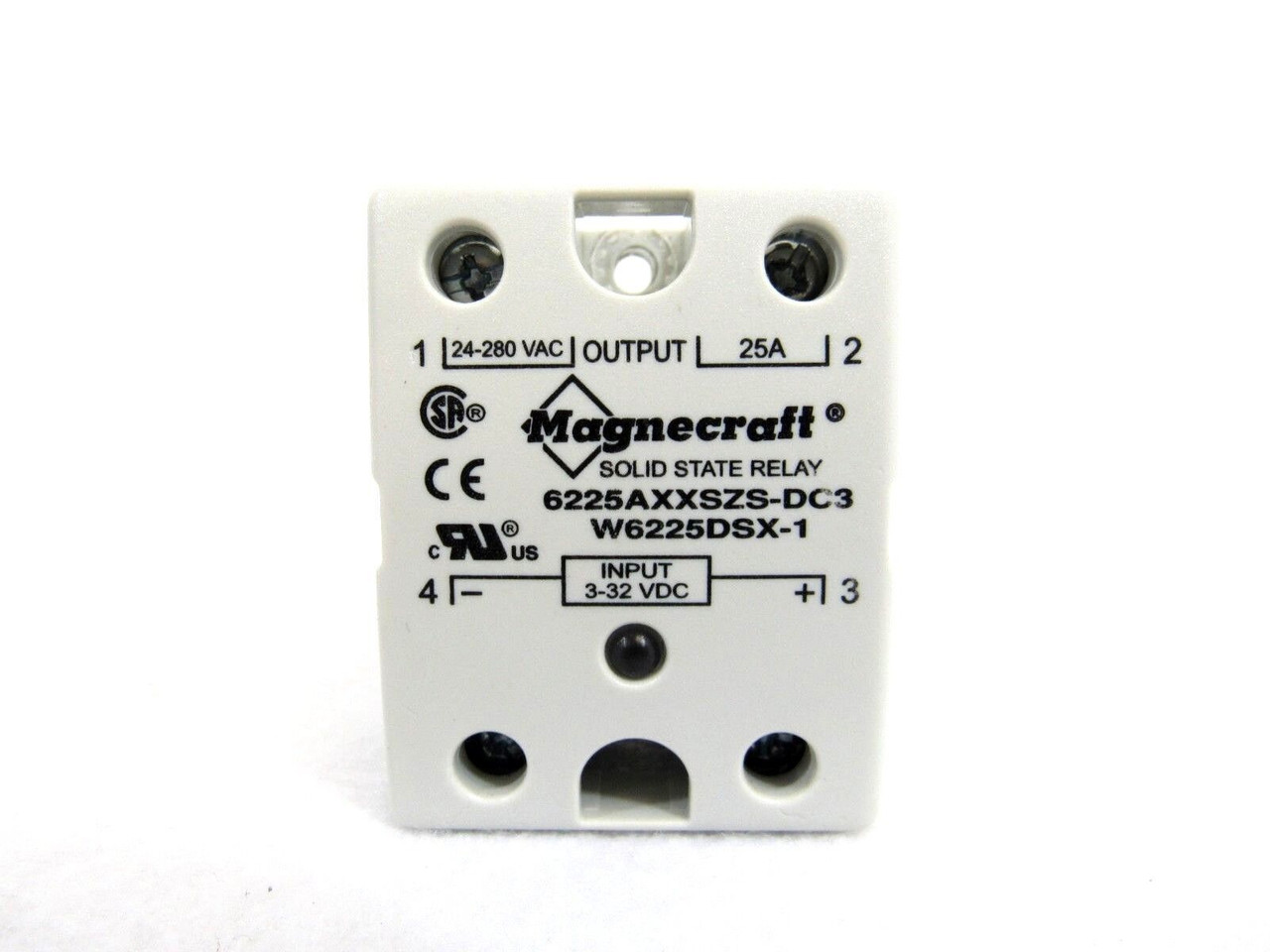

Magnecraft solid state relay with a 3-32VDC.
These relays were pulled from new switched drop down plug outlets that have never been used.

Contact Rating
25 A
Contact Configuration SPST-NO
Output Voltage Range 24 to 280 VAC
Switching Type Zero Cross
Switching Device SCR (2)
Maximum Zero Turn-On Voltage [Vpk] 600 V
Maximum Rate of Rise Off State Voltage [dv/dt] 500 V/us
Incandescent Lamp Ampere Rating [rms] 16 A
Motor Load Rating [rms] 8:00 AM
Min. Load Current to Maintain On 150 mA
Non-Repetitive Surge Current (1 cycle) 250 A
Max. RMS Overload Current (1 second) 40 A
Max. Off State Leakage Current [rms] 1 mA
Peak Blocking Voltage 600 Vpk
Max. On State Voltage Drop [rms] 1.6 VAC
Input Voltage Range
3 to 32 VDC
Maximum Turn-On Voltage 3 VDC
Minimum Turn-Off Voltage 1 VDC
Must Release Voltage 1 VDC
Typical Input Current 10 mA
Reverse Polarity Protection Yes
Thermal Resistance (Junction to Case)
1.02 °C/W
Minimum Insulation Resistance 1E+9 ohms
Maximum Capacitance 10
Rated Insulation Voltage, Input to Output 2500 VAC
Dielectric Strength, Terminals to Chassis 4000 VAC
Ambient Air Temperature around the Device - Storage -40 to +125 °C
Ambient Air Temperature around the Device - Operation -40 to +80 °C
Input Terminal M3.5
Output Terminal M4
Recommended Terminal Screw Torque Range 6-32 Screws: 10 in lb8-32 & 10-32 Screws: 20 in lb
Degree of Protection IP 20
LED Input Green
Weight 3 oz86.50 g
