Mean Well USA LPV 60 12 Class 2 Power Supply 68-3
$14.33
Product Description

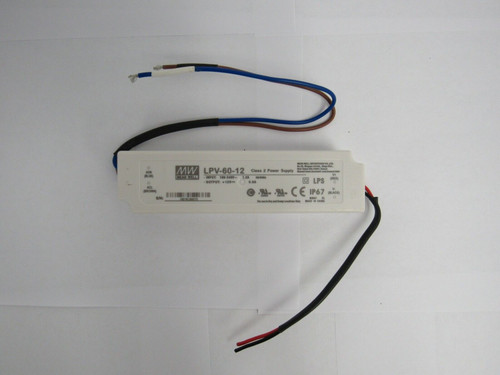

Mean Well USA LPV 60 12 Class 2 Power Supply
Power Supply; AC-DC; 12V; 5A; 100-264V In; Encapsulated; LED Driver; LPV-60 Series
Manufacturer #: LPV-60-12
Tested.Works Great.
Whats in box.
Mean Well USA LPV 60 12 Class 2 Power Supply.
Product Attribute Attribute Value
Series LPV-60 Series
Configuration Encapsulated
Output Current 5 A
Dimensions 6.39 L x 1.67 W x 1.25 H In.
Input Voltage 110/115/120 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220/230/240 VAC ; 220 VAC ; 230 VAC ; 240 VAC
Mounting Type Panel Mount
Type LED Driver
Output Voltage 12 VDC
Number of Outputs 1 Output
Operation Switching
Output Power 60 W
Voltage, Input Range 100-264 VAC
Primary Type AC-DC
Features:
Constant Current Mode Power Supply
Universal AC Input/Full Range
Fully Encapsulated with IP67 Level
Withstand 300 VAC Surge Input for 5 Second
Protections: Short Circuit, Over Current, Over Voltage
Fully Isolated Plastic Case
Cooling by Free Air Convection
Small and Compact Size
UL1310 Class 2 Power Unit
Pass LPS
100% Full Load Burn-In Test
Low Cost, High Reliability
Suitable for LED Lighting and Moving Sign Applications
Power Supply; AC-DC; 12V; 5A; 100-264V In; Encapsulated; LED Driver; LPV-60 Series
Manufacturer #: LPV-60-12
Tested.Works Great.
Whats in box.
Mean Well USA LPV 60 12 Class 2 Power Supply.
