Moxa CSM-400-1218 V1.0.0 10/100BaseT(X) to 100BaseFX slide-in management module converter, single-mode SC connector, -20 to 55°C

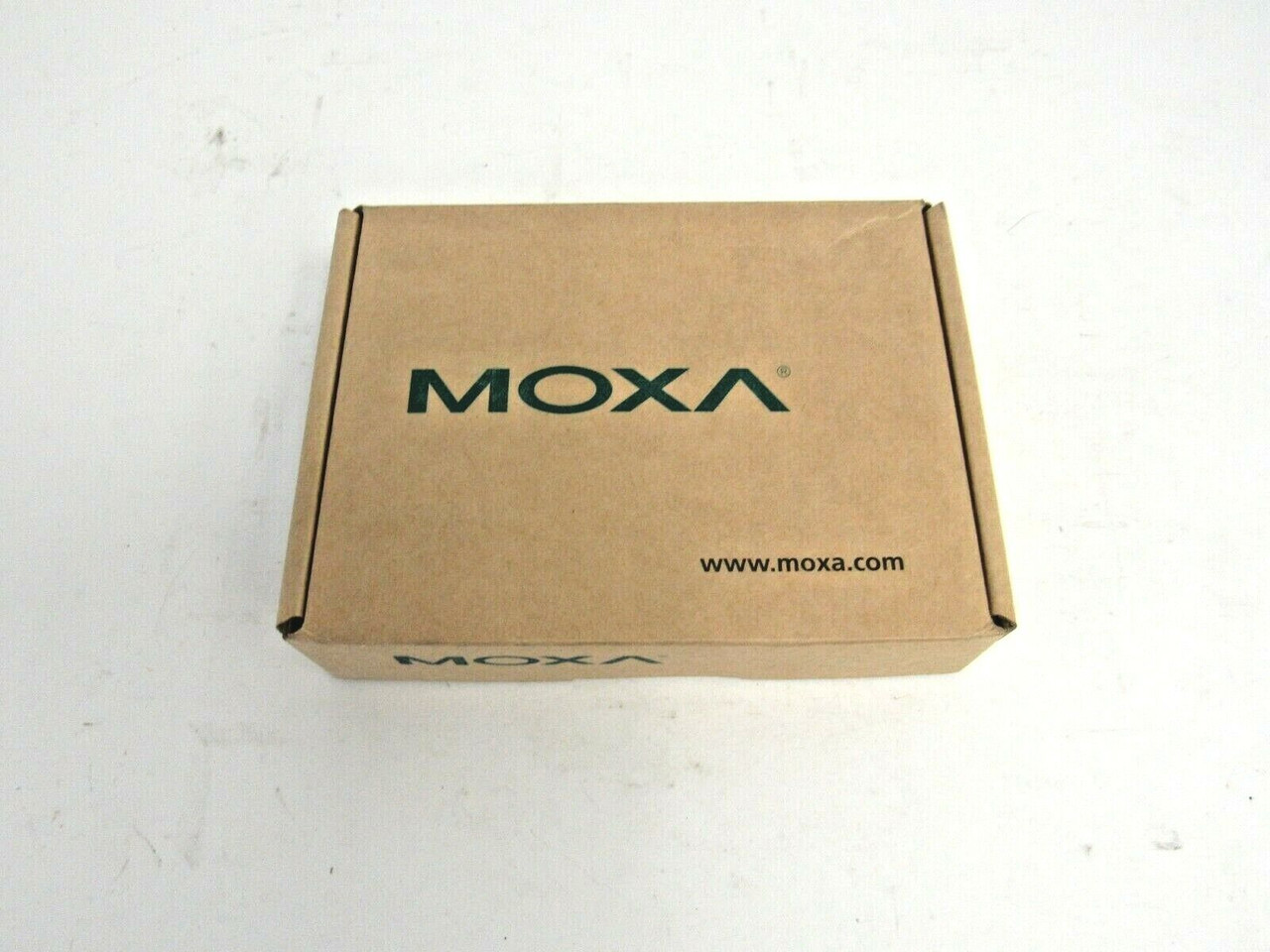

New in OEM packaging. Kept in a clean working environment.


Model

Brand Moxa
Series CSM-400
Model CSM-400-1218 V1.0.0
P/N CSM-400-1218



Specifications

10/100BaseT(X) Ports (RJ45 connector) 1x
100BaseFX Ports (single-mode SC connector) 1x
Magnetic Isolation Protection 1.5 kV (built-in)
Standards IEEE 802.3u for 100BaseT(X) and 100BaseFX
Input Current 220 mA @ 12 VDC
Input Voltage 12 VDC
Overload Current Protection Supported
Power Consumption 220 mA @ 12 VDC
Dimensions 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)
Operating Temperature -20 to 55°C (-4 to 131°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
