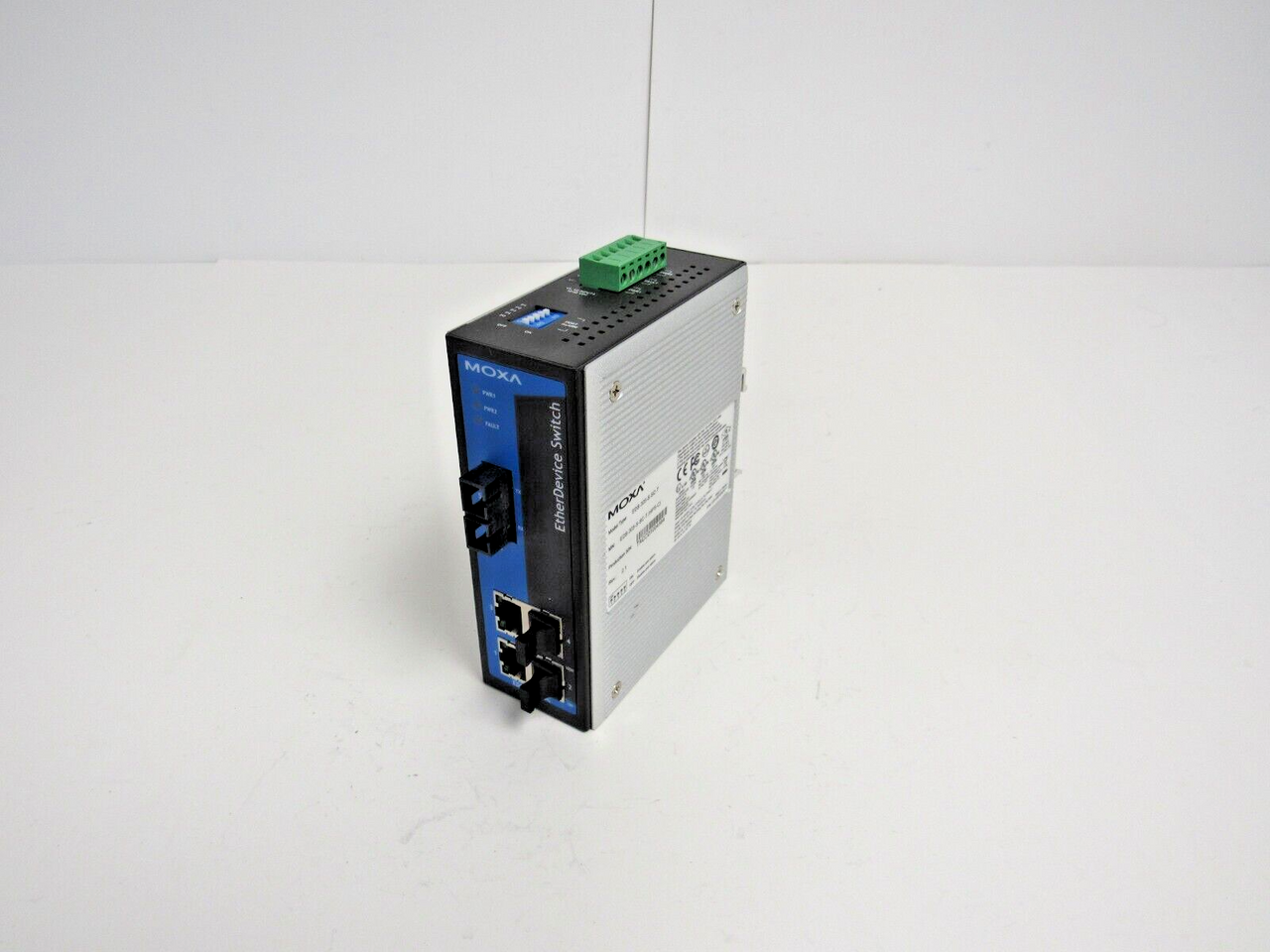

Moxa EDS-305-S-SC-T 4x 10/100Base T(X) Ports Unmanaged Switch

Switch is in good cosmetic condition. Kept in a clean environment. Displays signs of normal wear and tear. Pulled from a working environment.

Model

Brand Moxa
Model EDS-305-S-SC-T
P/N EDS-305-S-SC-T


Input/Output Interface
Alarm Contact Channels
1 relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
4
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (single-mode SC connector)
1
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
Optical Fiber

Read more

DIP Switch Configuration
Ethernet Interface
Port break alarm
Switch Properties
MAC Table Size
1 K
Packet Buffer Size
384 K
Processing Type
Store and Forward
Power Parameters
Input Current
0.15 A @ 24 VDC
Connection
1 removable 6-contact terminal block(s)
Operating Voltage
12 to 48 VDC
Input Voltage
24 VDC
Redundant dual inputs
Reverse Polarity Protection
Supported
Overload Current Protection
Supported
Physical Characteristics
Housing
Metal
IP Rating
IP30
Dimensions
53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight
790 g (1.75 lb)
Installation
DIN-rail mounting
Wall mounting (with optional kit)
Environmental Limits
Operating Temperature
-40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
Hazardous Locations
ATEX
Class I Division 2
EMI
CISPR 32, FCC Part 15B Class A
EMC
EN 55032/24
Vibration
IEC 60068-2-6
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
Safety
UL 508
UL 60950-1
CSA C22.2 No. 60950-1
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Maritime
DNV
MTBF
Time
422,742 hrs
Standards
MIL-HDBK-217F
Warranty
Warranty Period
5 years
Details
See Warranty Policy
