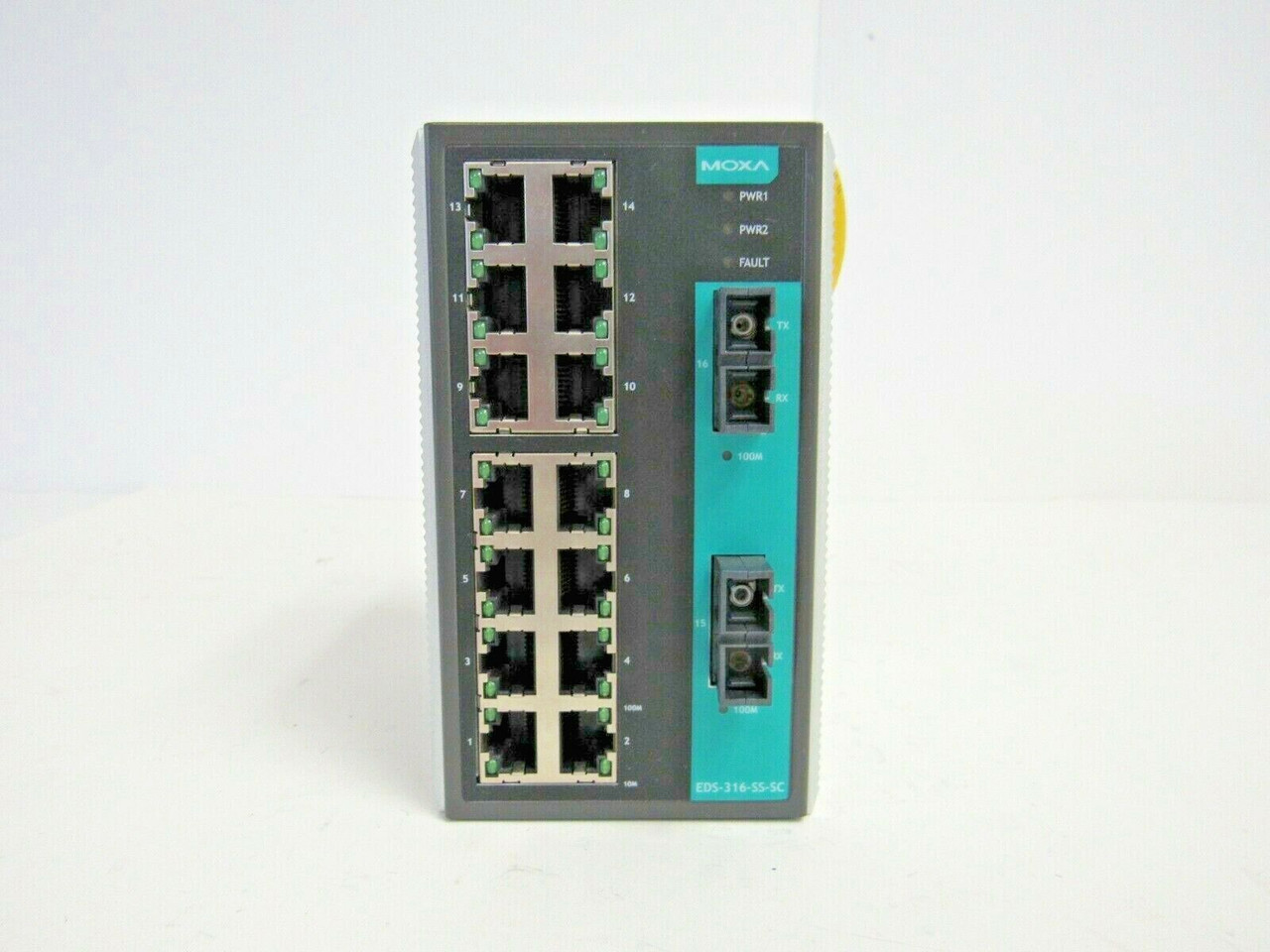

Moxa EDS-316-SS-SC Unmanaged 14x 10/100BaseT Ports 2x 100BaseFX SC Ports

Switch is in good cosmetic condition. Kept in a clean environment. Displays signs of normal wear and tear. Pulled from a working environment.

Model

Brand Moxa
Product Line EDS-316 Series
P/N EDS-316-SS-SC


Input/Output Interface

*

Alarm Contact Channels

** 1 relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface

*

10/100BaseT(X) Ports (RJ45 connector)

** 14
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

*

100BaseFX Ports (single-mode SC connector)

** 2

*

Standards

** IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control

*

DIP Switch Configuration

*

Ethernet Interface

** Port break alarm

Switch Properties

*

Packet Buffer Size

** 1.25 Mbits

*

MAC Table Size

** 4 K

*

Processing Type

** Store and Forward

Power Parameters

*

Input Current

** 0.4 A @ 24 VDC

*

Connection

** 1 removable 6-contact terminal block(s)

*

Operating Voltage

** 9.6 to 60 VDC

*

Input Voltage

** 12/24/48 VDC, Redundant dual inputs

*

Reverse Polarity Protection

** Supported

*

Overload Current Protection

** Supported

Physical Characteristics

*

Housing

** Metal

*

IP Rating

** IP30

*

Dimensions

** 80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in)

*

Weight

** 1140 g (2.52 lb)

*

Installation

** DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

*

Operating Temperature

** -10 to 60°C (14 to 140°F)

*

Storage Temperature (package included)

** -40 to 85°C (-40 to 185°F)

*

Ambient Relative Humidity

** 5 to 95% (non-condensing)

Standards and Certifications

*

Hazardous Locations

** ATEX, Class I Division 2

*

EMI

** CISPR 32, FCC Part 15B Class A

*

Maritime

** DNV-GL

*

EMC

** EN 55032/24

*

Vibration

** IEC 60068-2-6

*

EMS

** IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

*

Safety

** UL 508, UL 60950-1, CSA C22.2 No. 60950-1

*

Shock

** IEC 60068-2-27

*

Freefall

** IEC 60068-2-32

MTBF

*

Time

** 257,516 hrs

*

Standards

** MIL-HDBK-217F
