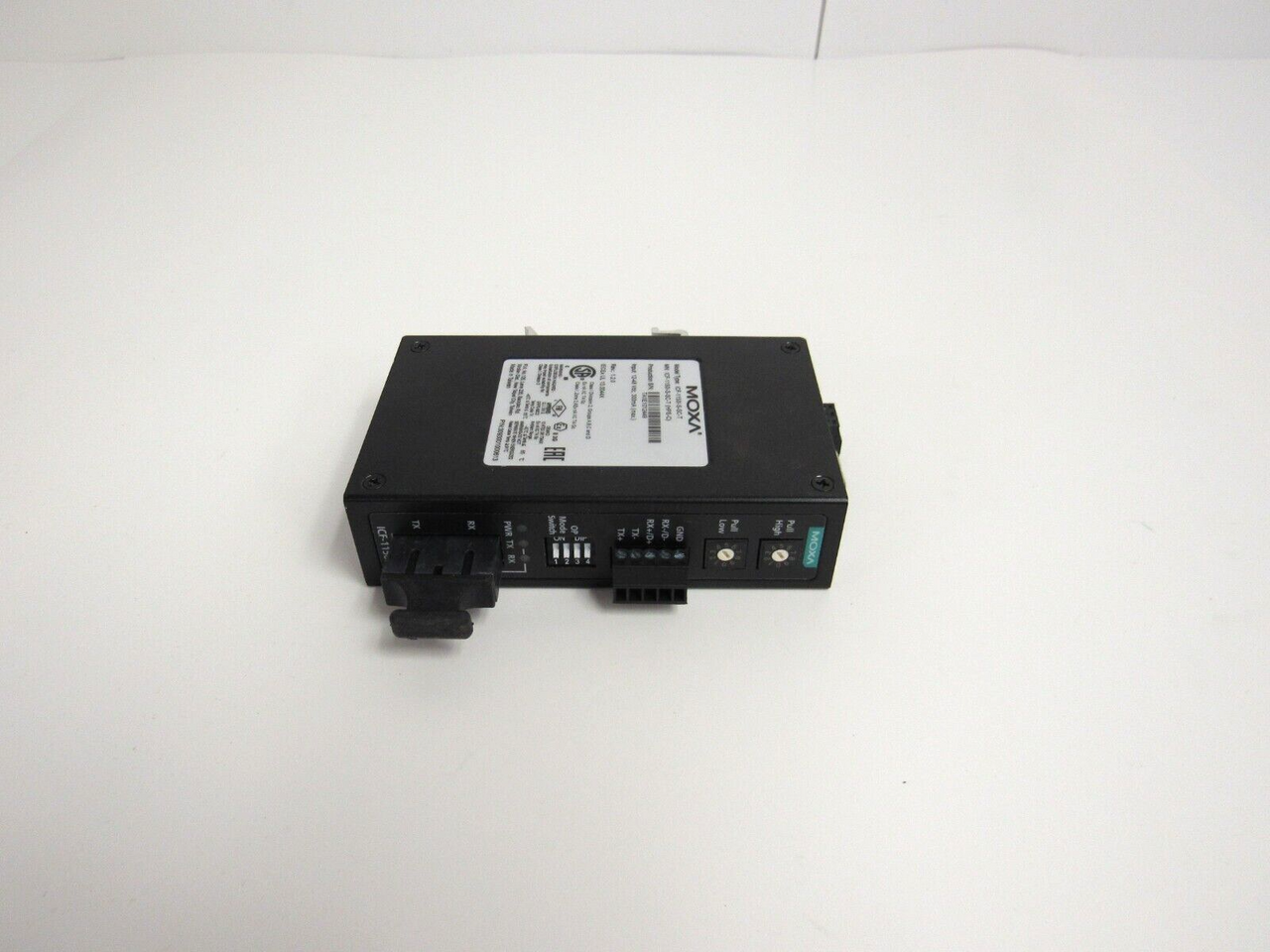

Moxa ICF-1150I-S-SC-T RS-232/422/485 Serial to Fiber Converter


Converter is in good cosmetic condition. Kept in a clean environment. Displays signs of normal wear and tear. Pulled from a working environment.

Model

Brand Moxa
Model ICF-1150I-S-SC-T


Specifications

No. of Ports 2
Serial Standards RS-232, RS-422, RS-485
Baudrate 50 bps to 921.6 kbps (supports non-standard baudrates)
Flow Control ADDC® (automatic data direction control) for RS-485
Connector 5-pin terminal block
DB9 male
Multi-mode SC connector
Isolation 2 kV (I models)
Pull High/Low Resistor for RS-485 150 kilo-ohm, 10 kilo-ohm, 4.7 kilo-ohm, 3.3 kilo-ohm, 1 kilo-ohm, 909 ohm, 822 ohm, 770 ohm, 500 ohm, 485 ohm
RS-485 Data Direction Control ADDC® (automatic data direction control)
Terminator for RS-485 N/A, 120 ohms, 120 kilo-ohms
Serial Signals RS-232 - TxD, RxD, GND
RS-422 - Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w - Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w - Data+, Data-, GND
Input Current 300 mA @ 12 to 48 VDC
Input Voltage 12 to 48 VDC
