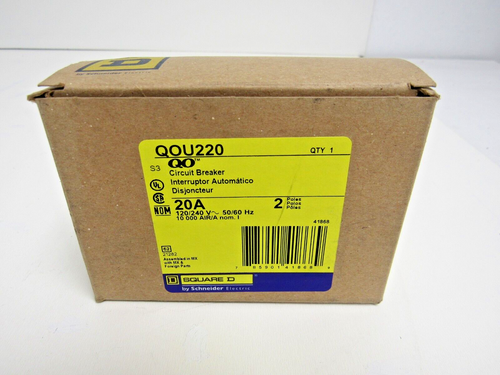

QOU220 - Square D Bolt-On Unit Mount Circuit Breaker

Square D miniature circuit breaker has a voltage rating of 120/240 Volts current rating of 20 Amps and interrupting rating of 10 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 14 - 2 AWG. It has DIN rail/flush/surface mounting and provides protection against over current.

Specifications:

* Product or component type: Miniature circuit-breaker
* Range of product: QOU
* Circuit breaker type: Standard
* Circuit breaker application: HACR and Switching Duty rated
* Line Rated Current: 20 A
* Number of Poles: 2P
* Interrupt Rating: 10 kA at: 120/240 V AC, 5 kA at: 48 V DC, 10 kA at: 120 V AC
* Electrical connection: Slotted box lugs, line side, Slotted box lugs, load side
* System Voltage: 120 V AC, 120/240 V AC, 48 V DC
* Mounting mode: Unit mount
* AWG gauge: AWG 14...AWG 2 (aluminium/copper)
* Height: 4.05 in
* Depth: 2.95 in
* Width: 1.5 in
* Product certifications: CSA, IEC, UL Listed
* Authentic Square D Product
* Dimensions (H x W x L): 4.05" x 1.5" x 2.95"
