Samsung SND-5061N 1.3MP HD(720P) Network Dome Camera

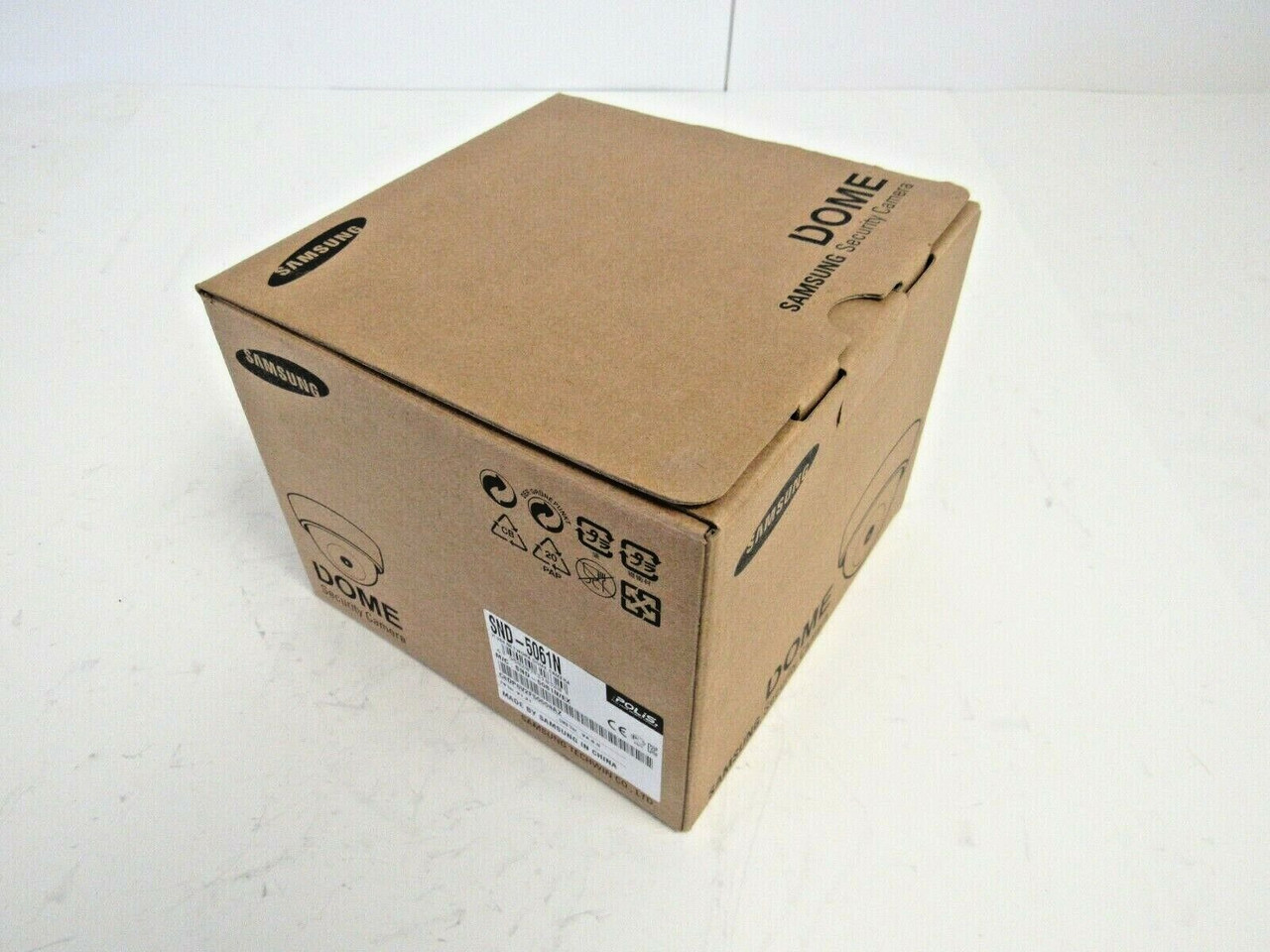

New in OEM packaging. Kept in a clean working environment.


Model

Brand Samsung
Model SND-5061N
P/N SND-5061N/EX


Video

Imaging Device 1/3" 1.3M PS CMOS
Total Pixels 1,384(H) x 1,076(V)
Effective Pixels 1,329(H) x 1,049(V)
Scanning System Progressive
Min. Illumination Color / B/W : 0.7 Lux (F1.2, 50IRE)
Video Out CVBS : 1.0 Vp-p / 75Ω composite, 704x480(N), 704x576(P), for installation


Lens

Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) Vari-focal
Max. Aperture Ratio F1.2
Angular Field of View H : 88.3°(Wide) ~ 32.4°(Tele), V : 71.5°(Wide) ~ 26°(Tele)
Min. Object Distance 50cm (500mm, 19.69")
Focus Control Manual
Lens Type DC Auto Iris
Mount Type Board-in Type


Pan / Tilt / Rotate

Pan Range 0° ~ 355°
Tilt Range 17° ~ 90°
Rotate Range 0° ~ 355°


Operational

Camera Title Off / On (Displayed up to 15 characters)
Day & Night Auto (S/W) / Color / B/W
Backlight Compensation Off / BLC
Digital Noise Reduction SSNR (Off / On)
Motion Detection Off / On (4 programmable zones, 20fps)
Privacy Masking Off / On (12 rectangular zones)
Sens-up (Frame Integration) Off / Auto (2x ~ 60x)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Auto / A.FLK / Manual (1/30 ~ 12,000sec)
Flip / Mirror Off / On
Intelligent Video Analytics Tampering (20fps)
Alarm I/O Input 1ea


Network

Ethernet

RJ-45 (10/100BASE-T)

Video Compression Format

H.264, MJPEG

Resolution

1280 x 1024, 1280 x 720P(HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240

Max. Framerate

H.264 : 30fps, MJPEG : 30fps (1280 x 1024), 30fps (720P HD)

Video Quality Adjustment

H.264 : Compression Level, Target Bitrate Level Control

MJPEG : Quality Level Control

Bitrate Control Method

H.264 : CBR or VBR, MJPEG : VBR

Streaming Capability

Multiple Streaming (Up to 10 Profiles)

IP

IPv4, IPv6


Protocol

TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS,ONVIF

QoS

On / Off

Security

HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access Log, 802.1x authentication

Streaming Method

Unicast / Multicast

Max. User Access

10 users at Unicast Mode

ONVIF Conformance

YES


Web Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian

Web Viewer Supported OS : Windows XP / VISTA / 7, MAC OS 10.7 or higher
Supported Browser : Internet Explorer 7.0 or Higher, Firefox 9 or higher, Google Chrome 15 or higher, Apple Safari 5.1 or higher
Central Management Software NET-i viewer


Environmental

Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C / Less than 90% RH


Electrical

Input Voltage / Current 12V DC, PoE (IEEE802.3af)
Power Consumption Max 3.7W (12V DC), Max 4.3W (PoE)


Mechanical

Color / Materia Ivory, Plastic
Dimensions (WxH) Ø115.8 x 92.7mm (Ø4.56" x 3.65")
Weight 345g (0.76 lb)
