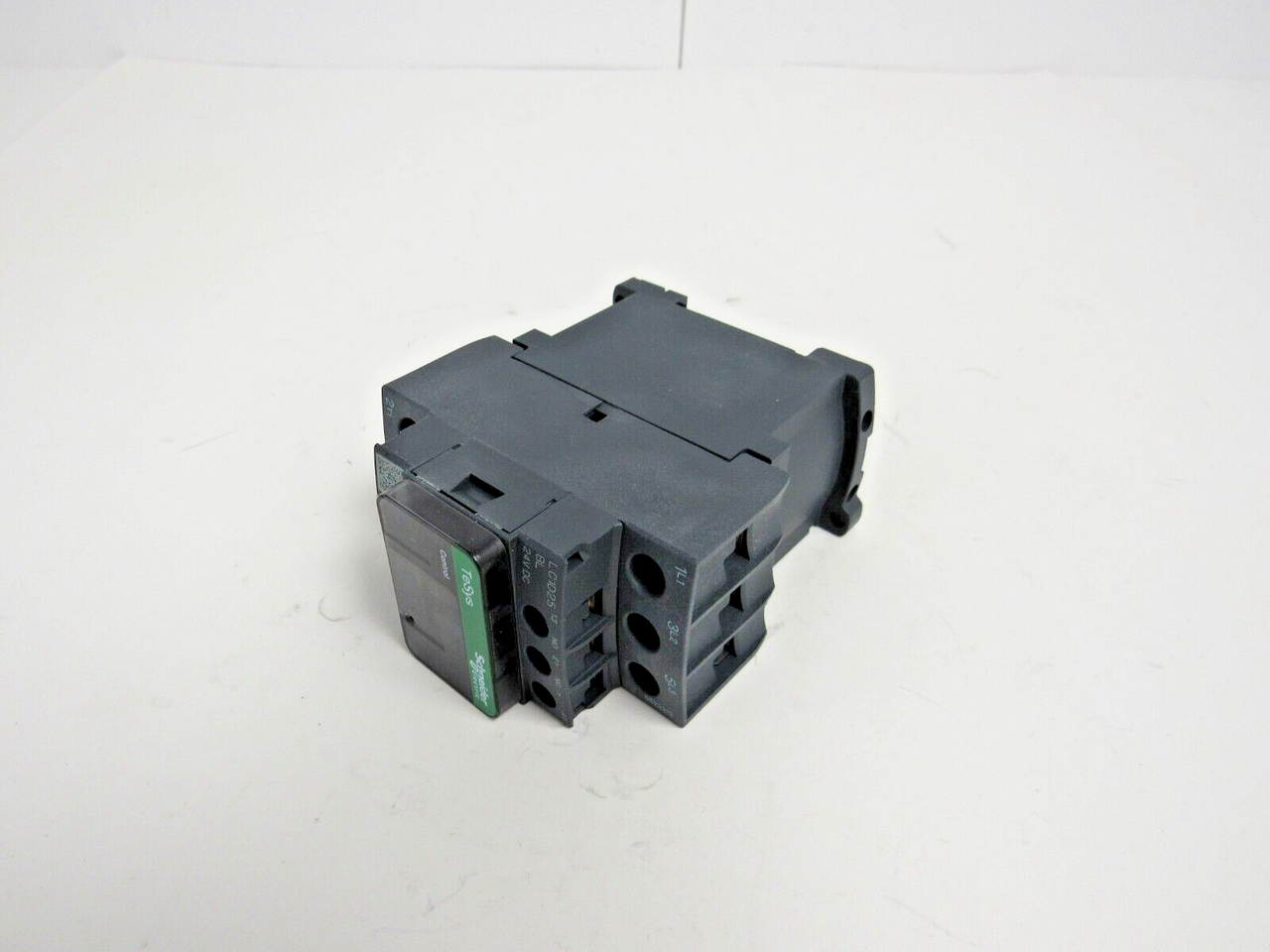

Schneider LC1D25BL IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, low consumption 24VDC coil


New in OEM packaging. Kept in a clean working environment.

Model

Brand Schneider
Model LC1D25BL


Specifications

Product or Component Type Contactor
Motor power kW 5.5 kW 220...230 V AC 50/60 Hz AC-3)
11 kW 380...400 V AC 50/60 Hz AC-3)
11 kW 415...440 V AC 50/60 Hz AC-3)
15 kW 500 V AC 50/60 Hz AC-3)
15 kW 660...690 V AC 50/60 Hz AC-3)
5.5 kW 400 V AC 50/60 Hz AC-4)
5.5 kW 220...230 V AC 50/60 Hz AC-3e)
11 kW 380...400 V AC 50/60 Hz AC-3e)
11 kW 415...440 V AC 50/60 Hz AC-3e)
15 kW 500 V AC 50/60 Hz AC-3e)
15 kW 660...690 V AC 50/60 Hz AC-3e)
Maximum Horse Power Rating 3 hp 230/240 V at AC 50/60 Hz for 1 phase
2 hp 115 V at AC 50/60 Hz for 1 phase
7.5 hp 230/240 V at AC 50/60 Hz for 3 phase
15 hp 460/480 V at AC 50/60 Hz for 3 phase
20 hp 575/600 V at AC 50/60 Hz for 3 phase
7.5 hp 200/208 V at AC 50/60 Hz for 3 phase
Compatibility code LC1D
Pole contact composition 3 NO
Contact compatibility M5
Protective cover With
[Ith] conventional free air thermal current 10 A 140 °F (60 °C) signalling circuit
40 A 140 °F (60 °C) power circuit
Irms rated making capacity 140 A AC signalling circuit IEC 60947-5-1
250 A DC signalling circuit IEC 60947-5-1
450 A 440 V power circuit IEC 60947
Rated breaking capacity 450 A 440 V power circuit IEC 60947
[Icw] rated short-time withstand current 240 A 104 °F (40 °C) - 10 s power circuit
380 A 104 °F (40 °C) - 1 s power circuit
50 A 104 °F (40 °C) - 10 min power circuit
120 A 104 °F (40 °C) - 1 min power circuit
100 A - 1 s signalling circuit
120 A - 500 ms signalling circuit
140 A - 100 ms signalling circuit
Associated fuse rating 10 A gG signalling circuit IEC 60947-5-1
63 A gG <= 690 V type 1 power circuit
40 A gG <= 690 V type 2 power circuit
Average impedance 2 mOhm - Ith 40 A 50 Hz power circuit
Power dissipation per pole 3.2 W AC-1
1.25 W AC-3
1.25 W AC-3e
[Ui] rated insulation voltage Power circuit 690 V IEC 60947-4-1
Power circuit 600 V CSA
Power circuit 600 V UL
Signaling circuit 690 V IEC 60947-1
Signaling circuit 600 V CSA
Signaling circuit 600 V UL
Overvoltage category III
Pollution degree 3
[Uimp] rated impulse withstand voltage 6 kV IEC 60947
Safety reliability level 1.65 Mcycles 25 A AC-3 <= 440 V
1.4 Mcycles 40 A AC-1 <= 440 V
1.65 Mcycles 25 A AC-3e <= 440 V
Control circuit type DC low consumption
Coil technology Built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits 0.1...0.3 Uc -40...158 °F (-40...70 °C) drop-out DC
0.8...1.25 Uc -40...140 °F (-40...60 °C) operational DC
1...1.25 Uc 140...158 °F (60...70 °C) operational DC
Inrush power in W 2.4 W 68 °F (20 °C)
