IEC contactor, TeSys D, nonreversing, 65A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VDC coil, open style

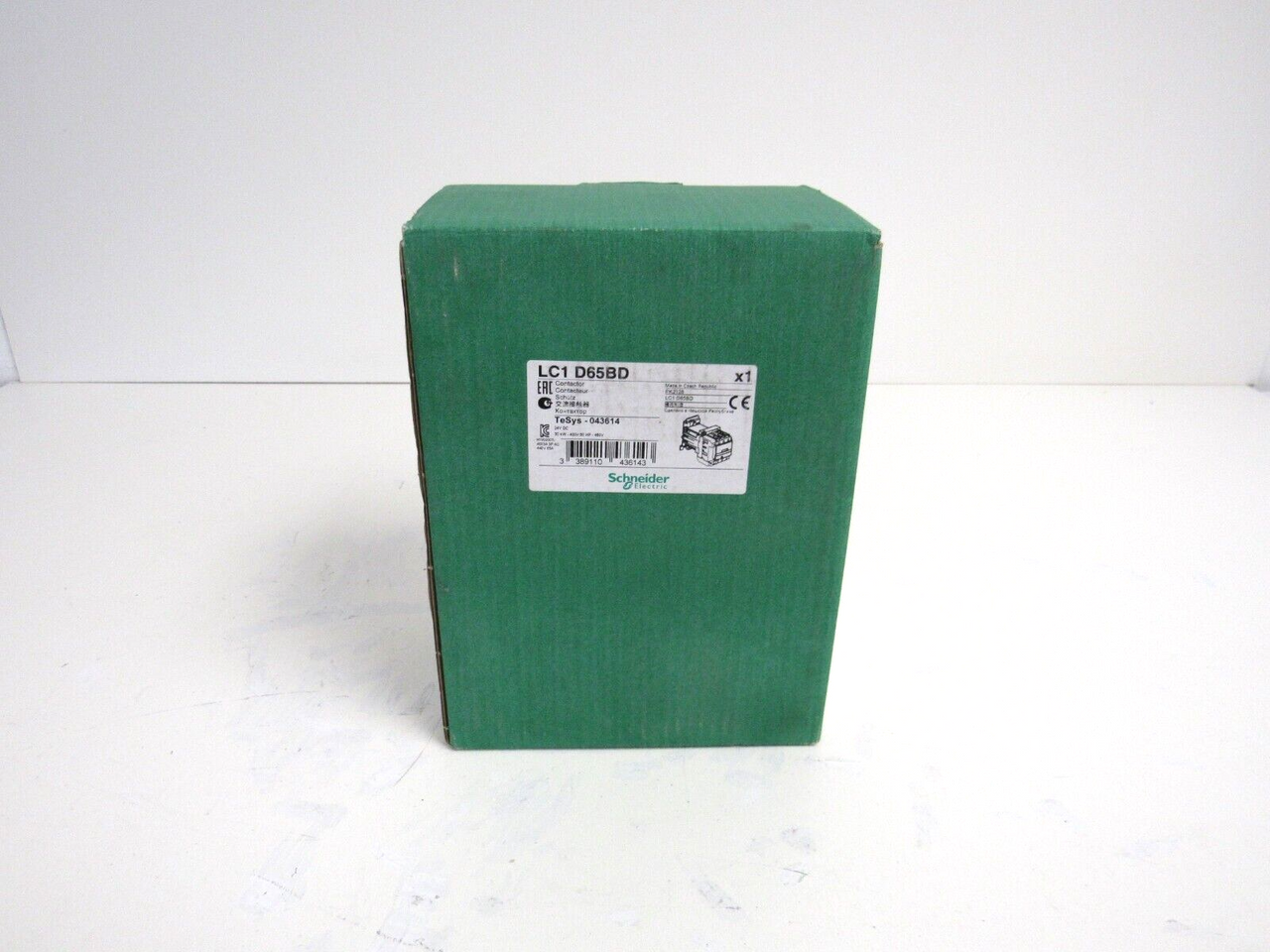

New in OEM packaging. Kept in a clean working environment.

Specifications

Main
Range TeSys
Range of Product TeSys Deca
Product or Component Type Contactor
Device short name LC1D
contactor application Motor control
Utilisation category AC-3
AC-2
AC-1
AC-3e
poles description 3P
[Ue] rated operational voltage Power circuit = 690 V AC 25...400 Hz
[Ie] rated operational current 65 A (at 140 °F (60 °C)) at = 440 V AC AC-3 for power circuit
65 A (at 140 °F (60 °C)) at = 440 V AC AC-3e for power circuit
80 A (at 140 °F (60 °C)) at = 440 V AC AC-1 for power circuit
[Uc] control circuit voltage 24 V DC

Complementary
Motor power kW 30 kW at 380...400 V AC 50 Hz
37 kW at 500 V AC 50 Hz
37 kW at 660...690 V AC 50 Hz
18.5 kW at 220...230 V AC 50 Hz
30 kW at 415 V AC 50 Hz
37 kW at 1000 V AC 50 Hz (AC-3)
11 kW at 400 V AC 50 Hz (AC-4)
30 kW at 440 V AC 50 Hz (AC-3)
Maximum Horse Power Rating 10 hp at 230/240 V AC 60 Hz for 1 phase motors
20 hp at 200/208 V AC 60 Hz for 3 phase motors
20 hp at 230/240 V AC 60 Hz for 3 phase motors
40 hp at 460/480 V AC 60 Hz for 3 phase motors
50 hp at 575/600 V AC 60 Hz for 3 phase motors
5 hp at 115 V AC 60 Hz for 1 phase motors
Compatibility code LC1D
Pole contact composition 3 NO
Protective cover With
[Ith] conventional free air thermal current 80 A (at 140 °F (60 °C)) for power circuit
10 A (at 140 °F (60 °C)) for control circuit
Irms rated making capacity 1000 A at 440 V DC for power circuit conforming to IEC 60947
1000 A at 440 V for power circuit conforming to IEC 60947
250 A DC for control circuit conforming to IEC 60947-5-1
Rated breaking capacity 1000 A at 440 V for power circuit conforming to IEC 60947
Associated fuse rating 125 A gG at = 690 V coordination type 2 for power circuit
160 A gG at = 690 V coordination type 1 for power circuit conforming to IEC 60947-5-1
125 A gG at = 690 V coordination type 1 for power circuit
10 A gG for control circuit conforming to IEC 60947-5-1
Power dissipation per pole 6.4 W AC-1
4.2 W AC-3e
4.2 W AC-3
[Ui] rated insulation voltage Control circuit 600 V UL
Power circuit 600 V CSA
Power circuit 600 V UL IEC 60947-1
Control circuit 690 V IEC 60947-1
Power circuit 690 V IEC 60947-1
Power circuit 1000 V CSA IEC 60947-4-1
Control circuit 600 V CSA
Overvoltage category III
[Uimp] rated impulse withstand voltage 8 kV IEC 60947
Safety reliability level B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
Mechanical durability 10000000 cycles
Control circuit type DC wide range
Coil technology Built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits 0.75...1.25 Uc -40...140 °F (-40...60 °C) operational DC
1...1.25 Uc 140...158 °F (60...70 °C) operational DC
0.1...0.3 Uc -40...158 °F (-40...70 °C) drop-out DC
Inrush power in W 19 W 68 °F (20 °C))
Hold-in power consumption in W 22 W 68 °F (20 °C)
Rated operational power in W 48 W 24 V DC-13 3000000 cycles - control circuit
96 W 24 V DC-13 1000000 cycles - control circuit
14 W 24 V DC-13 10000000 cycles - control circuit
Operating time 50 ±15 % ms closing
20 ±20 % ms opening
Time constant 34 ms
Maximum operating rate 3600 cyc/h 140 °F (60 °C)
Maximum operating rate 3600 cyc/h at 60 °C
Connections - terminals Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: rigid without cable end
Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end
Power circuit: screw terminals 1 0.004...0.04 in² (2.5...25 mm²) - cable stiffness: rigid
Power circuit: screw terminals 2 0.004...0.02 in² (2.5...16 mm²) - cable stiffness: rigid without cable end
Power circuit: screw terminals 1 0.004...0.04 in² (2.5...25 mm²) - cable stiffness: flexible without cable end
Power circuit: screw terminals 2 0.004...0.02 in² (2.5...16 mm²) - cable stiffness: flexible without cable end
Power circuit: screw terminals 1 0.004...0.04 in² (2.5...25 mm²) - cable stiffness: flexible with cable end
Power circuit: screw terminals 2 0.004...0.02 in² (2.5...10 mm²) - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: rigid
Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: rigid
Tightening torque Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminal Philips No 2
Power circuit 44.3 lbf.in (5 N.m) screw terminal flat Ø 6 to Ø 8 mm
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminal pozidriv No 2
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminal flat Ø 6 mm
Auxiliary contact composition 1 NO + 1 NC
Auxiliary contacts type Mirror contact 1 NC IEC 60947-4-1
Mechanically linked 1 NO + 1 NC IEC 60947-5-1
Minimum switching voltage 17 V for control circuit
Minimum switching current 5 mA for control circuit
Insulation resistance > 10 MOhm for control circuit
Non-overlap time 1.5 ms on energisation between NC and NO contacts
1.5 ms on de-energisation between NC and NO contacts
Mounting Support Plate
Rail

Environment
Standards IEC 60947-5-1
IEC 60947-4-1
EN 60947-4-1
UL 508
EN 60947-5-1
Product Certifications GOST
LROS (Lloyds register of shipping)
DNV
CCC
CSA
GL
UL
RINA
UKCA
IP degree of protection IP2X VDE 0106
IP2X IEC 60529
Climatic withstand IACS E10 exposure to damp heat
Operating altitude 0...9842.52 ft (0...3000 m)
Fire resistance 1562 °F (850 °C) IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Shocks contactor closed 15 Gn for 11 ms)
Vibrations contactor opened 2 Gn, 5...300 Hz)
Vibrations contactor closed 4 Gn, 5...300 Hz)
Shocks contactor opened 10 Gn for 11 ms)
Height 5.0000000000 in (127 mm)
Width 3.3 in (85 mm)
Depth 6.9 in (176 mm)
Net Weight 4.817 lb(US) (2.185 kg)
