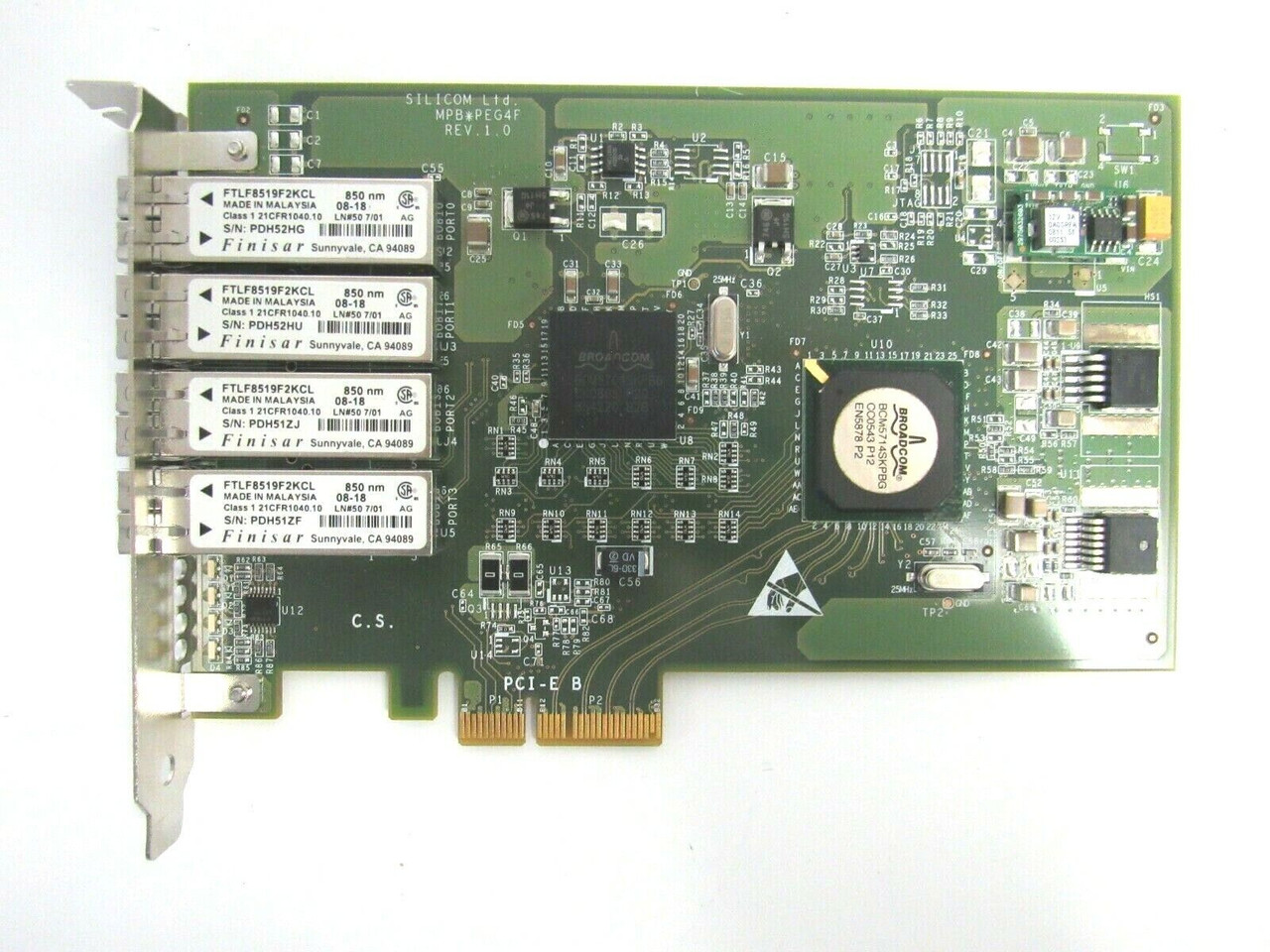

Silicom Server Adpater

Adapter is in good cosmetic condition. It is kept in a clean working environment. It has
been fully tested to ensure there are no issues with the adapter and its functions. Passed
all tests.

P/N PEG4F-RoHS
Rev 1.0



Fiber Gigabit Ethernet Technical Specifications - (1000Base-SX) Adapters:

IEEE Standard / Network topology:

Fiber Gigabit Ethernet, 1000Base-SX (850nM)

Data Transfer Rate:

2000Mbit/s in full duplex mode per port

Cables and Operating distance:

Multimode fiber:

220m at 62.5 um

550m at 50 um

Optical Output Power:

Typical: -6 dBm

Minimum: -9.5 dBm

Optical Receive Sensitivity:

Typical: -21 dBm

Maximum: -17 dBm


Operating Systems Support

Operating system support:

Windows.NET

Windows 2000

Windows NT

Windows98 / WindowsXP

Netware

Linux

FreeBSD

Unix:

SCO Open Server

UnixWare / OpenUnix 8

Solaris

General Technical Specifications

Interface Standard:

PCI Express Base Specification Revision 1.0

Board Size:

Short PCI Add in card: 167.64mm x 106.68mm (6.6"X 4.2"),

Detailed description appendix A

PCI Express Card Type:

X4 Lane
