Stego CSS 014 Analog Smart Sensor DC 24V 01420.2-00

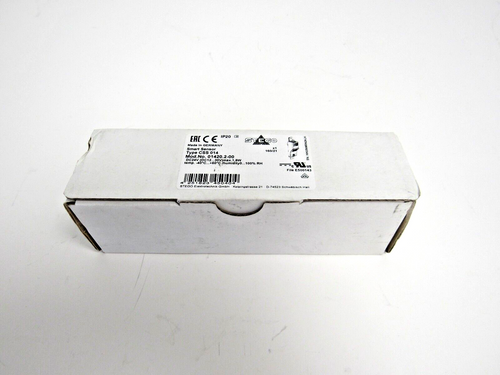

New in OEM packaging. Kept in a clean working environment.

Model

Brand Stego
Description Analog DC 24V Smart Sensor
Model CSS 014
P/N 01420.2-00


Specifications

Features - Analog/digital interface
- Easy clip and/or screw fixing
- High accuracy
- Quick connection (M12 plug-in connector)
- Large temperature and humidity range
- Various application areas (IEC 61010-1/DIN EN 61010-1)
Measuring signals temperature, humidity
Interface analog (4-20 mA)
Load resistance (external) ≤ 500 Ω
Connection M12 round plug connector, IEC 61076-2-101, 4-pin, A-coded, shielded
Electrical protection Reverse-polarity, short circuit, overvoltage protection
Mounting clip for 35 mm DIN rail, EN 60715 and screw fixing M5
Casing plastic according to UL94 V-0, light grey
Dimensions 140 x 40 x 38 mm
Weight ~ 50 g
Fitting Position vertical (connection on top)
Storage temperature -40 to +85 °C (-40 to +185 °F)
Operating/Storage humidity < 90% RH (non-condensing)
Protection type1/Protection class IP20 (sensor only IP57) / III (SELV)
Approvals VDE, UL File No. E500143 (acc. to IEC 61010-1/DIN EN 61010-1), EAC
Note Other measuring ranges on request
