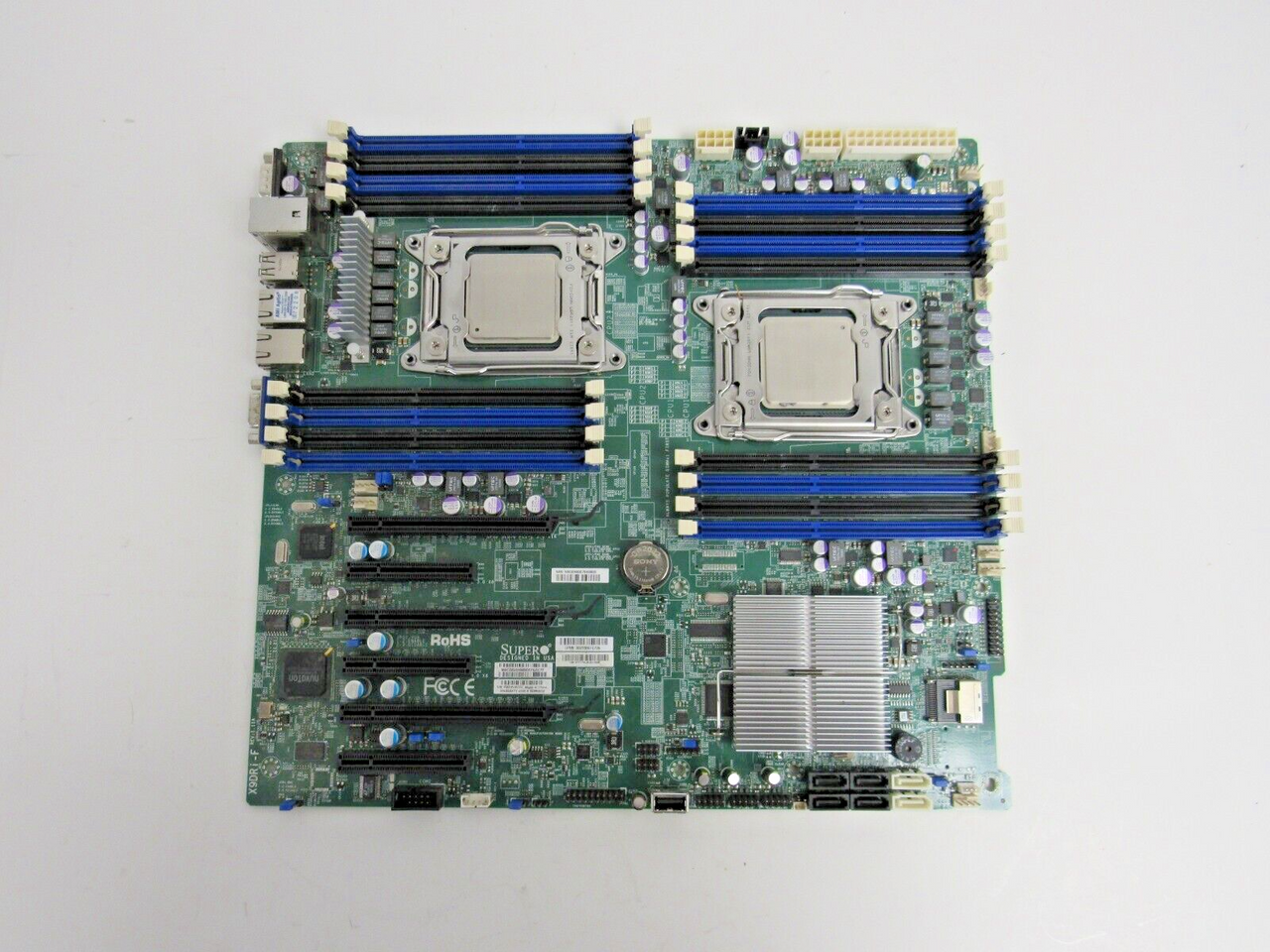

Supermicro X9DRi-F LGA2011 E-ATX Motherboard w/ 2x Xeon E5-2609 Processors


Motherboard and processors are in good cosmetic condition. Kept in a clean environment. Display signs of normal wear and tear. Pulled from a working environment.

Motherboard Model

Brand Supermicro
Model X9DRi-F


Motherboard Specifications

Form Factor EATX
CPU Socket Type LGA 2011
Supported CPU(s) Intel Xeon Processor
Supported CPU Technologies 64-bit
AES New Instructions
Demand Based Switching
Enhanced Intel Speedstep Technology
Execute Disable Bit
Idle States
Intel 64 Architecture
Intel Trusted Execution Technology
Intel Virtualization Technology
Thermal Monitoring Technologies
Chipset Intel C602
Number of Memory Slot(s) 16
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
PC3-12800 (DDR3-1600)
PC3-6400 (DDR3-800)
PC3-8500 (DDR3-1066)
Maximum Installed Memory 1TB
Expansion Slots PCI Express x16
PCI Express x8
Expansion Slots Details 3x PCI-E 3.0 x16 slots
3x PCI-E 3.0 x8 slots
Storage Controller Serial-ATA 3.0 Gbps
Serial-ATA 6.0 Gbps
Storage Controller Details SATA 2.0 3Gbps with RAID 0, 1, 5, 10
SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SATA 2.0 3Gbps with RAID 0, 1, 5, 10
On-Board Video Controller Matrox G200eW
Network Gigabit Ethernet
Connectors/Ports RJ-45 (Ethernet)
USB 2.0
Connectors/Ports Details 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
11 USB 2.0 ports total (4 rear + 6 via header + 1 Type A)
1 VGA port
2 Fast UART 16550 ports: 1 rear and 1 header
1 DOM (Disk on Module) power connector
1 TPM Header


Processor Model

Brand Intel
Model Xeon E5-2609
Spec Code SR0LA
Code Name Sandy Bridge EP


Specifications

Core Stepping M0
Manufacturing Technology 32 nm
CPU ID String 206D6
# of Cores 4
# of Threads 4
Clock Speed 2.40 GHz
L3 Cache Size 10 MB
Front Side Bus / QuickPath Interconnect 6.40 GT/s QPI
Thermal Power 80 Watts
VID Voltage Range 0.60V-1.35V
CPU Socket Type LGA 2011
