TDK-Lambda RSEV-2006 Power Line EMC Filters

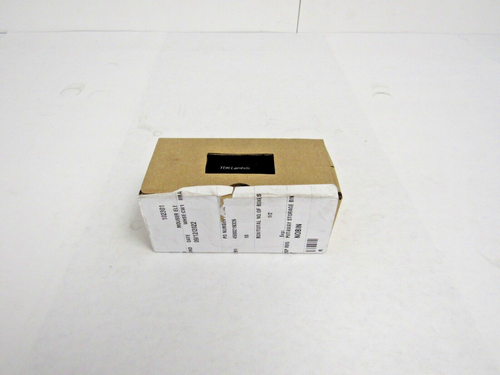

New in OEM packaging. Kept in a clean working environment.

Model

Brand TDK-Lambda
P/N RSEV-2006


Specifications

Rated Current 6A
Rated Voltage [AC] 250V
Rated Voltage [DC] 250V
Withstanding Voltage AC2500V, 60s [line - earth]
Insulation Resistance (Min.) 100MΩ [DC500V, 1min.]
Leakage Current (Max.) 1mA [250V, 60Hz]
DC Resistance (Max.) 110mΩ
Common Mode Attenuation (Min.) 25dB (0.1MHz to 30MHz)
Differential Mode Attenuation (Min.) 25dB (0.2MHz to 30MHz)
