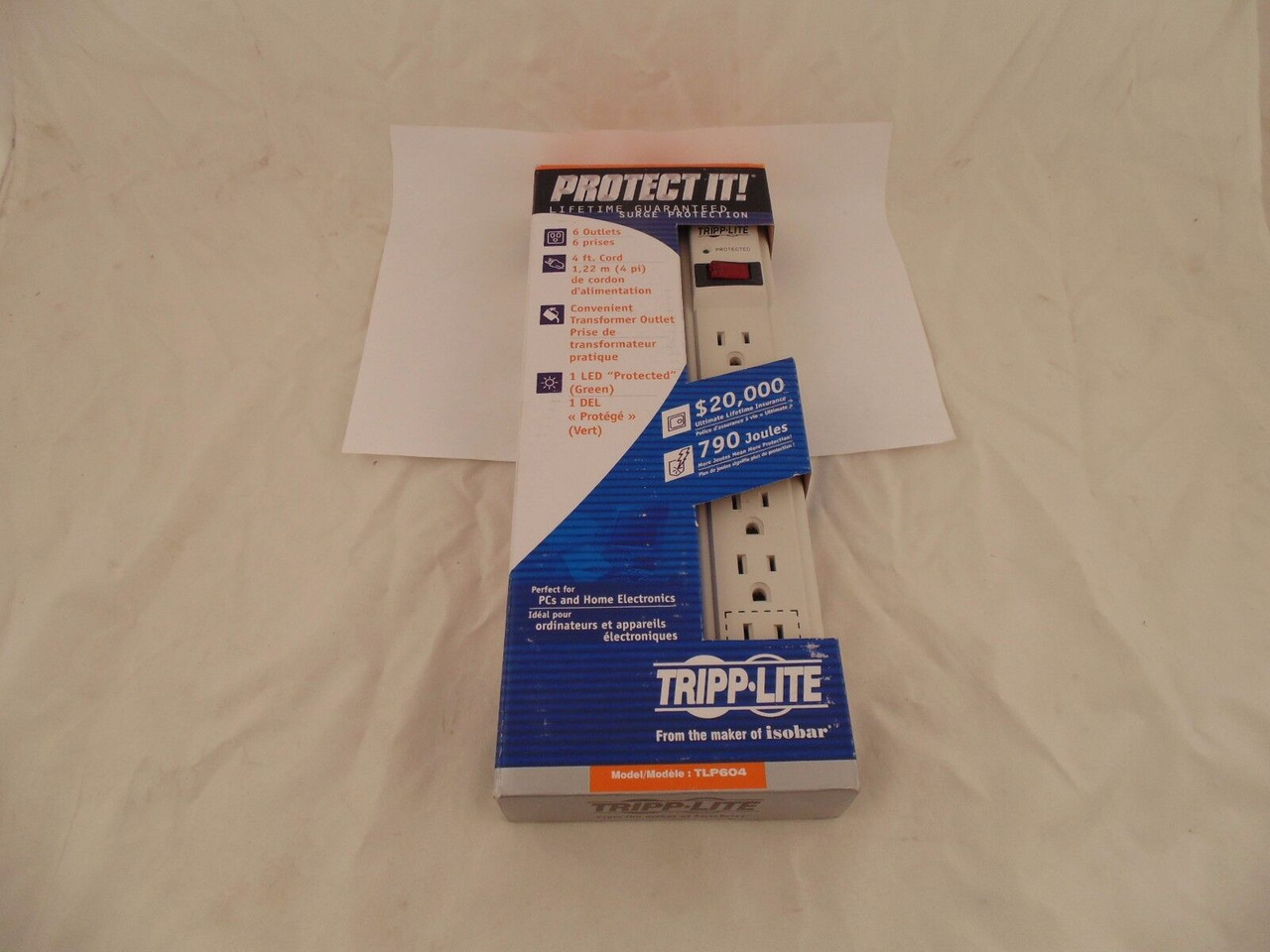

Tripp Lite's TLP604 offers economical AC surge suppression for protection of workstations, desktop PCs, telecom systems and other sensitive electronics. Built-in AC surge suppression shields connected equipment from damage and performance problems due to transient surges. TLP604 offers 6 total outlets, 4 foot cord and diagnostic LED to warn of suppressor damage. AC suppression rated at 790 joules shields equipment from surges and line noise. Attractive white suppressor housing with keyhole mounting tabs and 1 designated transformer plug outlet offers convenient protection of desktop computer equipment and accessories. $20,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).

PLUG/OUTLETS: Input: NEMA5-15P/Output: 6 NEMA5-15R/4-ft. AC line cord

ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA5-15R wall receptacle)

FORMAT: Corded multi-outlet strip

SUPPRESSION: AC: 150V RMS Clamping/790 joules/500V UL1449 Let-through


Features


790 joules AC surge suppression shields equipment from the strongest surges and line noise

6 AC outlets with room for 1 transformer plugs without blocking outlets covers computers and peripherals

4 foot AC line cable

Built-in power switch and 15 amp circuit breaker offers power control and overload protection over all outlets

Fail-safe thermal fusing protects against fire and other damage in the event of an extreme, extended overvoltage or surge condition

Diagnostic LEDs confirm surge suppression status

Attractive white suppressor housing with keyhole mounting tabs allow versatile placement options

UL1449 3rd Edition Rated (500V all modes), UL1363 (Power Tap), UL497A (Communications), Meets FCC part 68 rules, cUL (Canada)

Exceeds IEEE 587 category A & B surge suppression specifications

$20,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)

Automatic shutoff cuts power to outlets when the protection circuit has been compromised

Package Includes


TLP604 Surge Suppressor

Instruction manual with warranty information

Specifications


OUTPUT


Frequency Compatibility 50 / 60 Hz

Output Receptacles (6) 5-15R

Output (Watts) 1800

Circuit Breaker (amps) 15

Transformer Accommodation Supports 1 large transformer plug accessory without covering remaining outlets, accepts up to 4 transformers total

Outlet Orientation Single row

Right-Angle Outlets No

INPUT


Nominal Input Voltage(s) Supported 120V AC

Recommended Electrical Service 120V (110-125V)

Input Connection Type NEMA 5-15P

Input Cord Length (ft.) 4

Input Cord Gauge Type 14 gauge, SJT

Voltage Compatibility (VAC) 120

Maximum Surge Amps 36000

Right-Angle Plug No

USER INTERFACE, ALERTS & CONTROLS


Switches Combination AC circuit breaker and 2 position on/off power switch

Diagnostic LED Details Built-in LED confirms suppressor "protection present" (green) status

SURGE / NOISE SUPPRESSION


AC Suppression Joule Rating 790

AC Suppression Response Time < 1 ns

Protection Modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression

Clamping Voltage (RMS) 150

UL1449 Let Through Rating 500V

DATALINE SURGE SUPPRESSION


Telephone/DSL Protection No

Cable (Coax) Protection No

Network (Ethernet) Protection No

PHYSICAL


Shipping Dimensions (hwd / in.) 8 x 4 x 1.30

Shipping Weight (lbs.) .86

Unit Dimensions (hwd / in.) 10.8 x 1.85 x 1.23

Unit Weight (lbs.) .80

Material of Construction Plastic

Integrated Keyhole Mounting Tabs Keyhole mounting tabs enable wall mounting

Housing Color Light Gray

Receptacle Color Light Gray

Color (AC Line Cord) Light Gray

Outlets Measurement (Center to Center) 28.5mm

Keyhole Slot Mounting Measurement (Center to Center) Distance between slots = 101mm; Distance between slot height = 28mm

CERTIFICATIONS


UL1449 3rd Edition (AC Suppression) UL1449 3RD EDITION

UL1363 (Power Tap) UL1363

cUL / CSA (Canada) cUL

Approvals Exceeds IEEE 587 category A&B specifications
