Details, on part number: DT2-PTB-25AS12F-R3-0

Part DT2-PTP-15FS06F-RD2-5040
Category Wire, Connectors and Interconnects => Terminal Blocks => Terminal Blocks

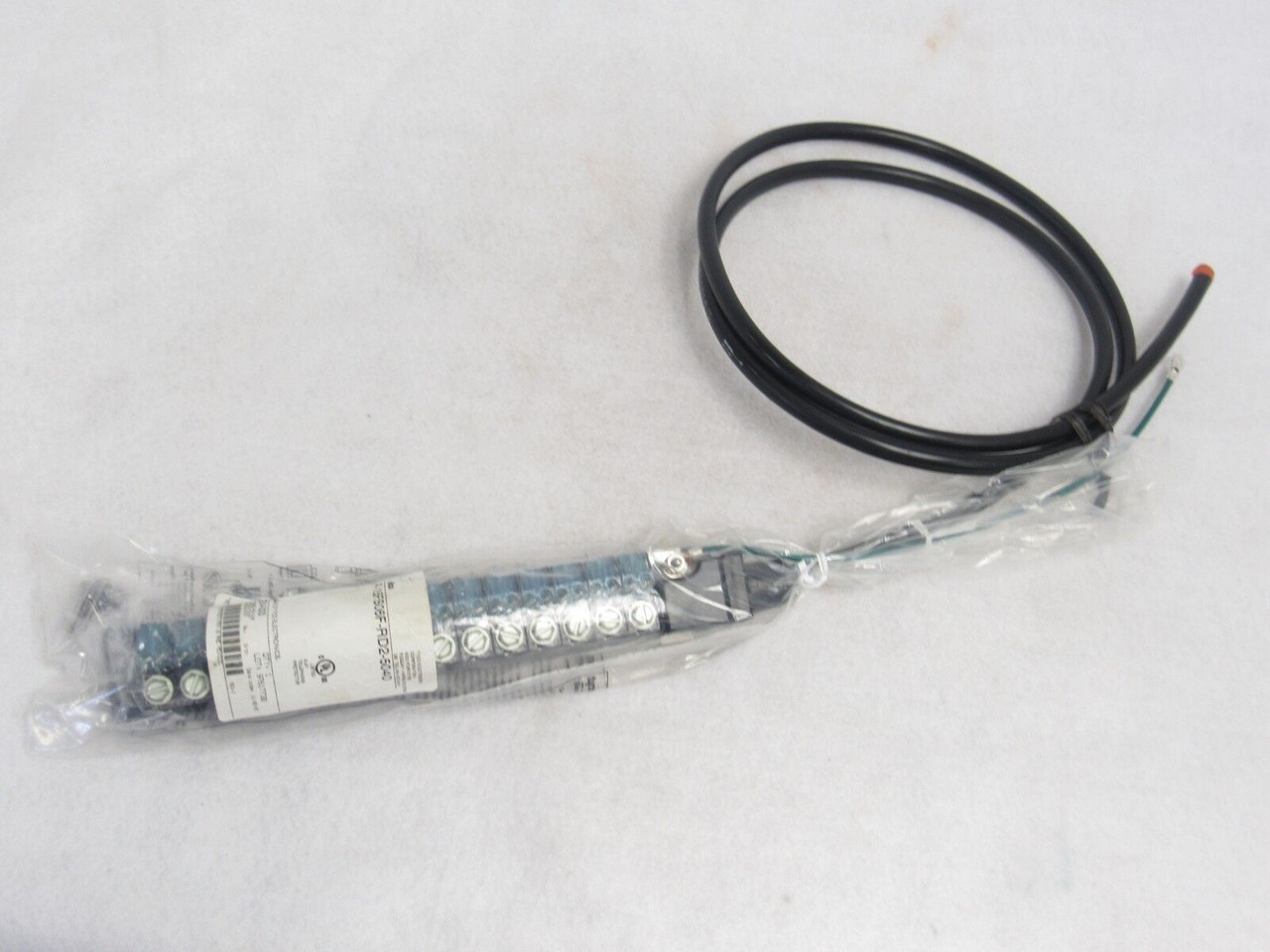

Title STRIP TERMINAL BLOCK, 1 ROW, 1 DECK

Company TE Connectivity


Specifications
Mounting Options Universal Mounting Foot
nb of Contacts 15
North American 18 AWG
Termination Options Screw Clamp
Approvals UL Listing Mark

Features, Applications

GelGuard gel sealing technology Versatile mounting system Protection can be added as needed Environmentally sealed protection

The DTerminator 2 PTB/PTX/PTP pedestalmounted terminal block systems utilize Tyco Electronics' revolutionary GelGuard gel sealing technology to environmentally protect the wire connections. Three models have been designed. The DTerminator 2 PTB terminal block offers enhanced characteristics with a versatile mounting system suitable for attachment to any pedestal faceplate. This model cannot be protected. The DTerminator 2 PTX upgradable terminal block includes a grounding strip. Although is an unprotected model, the PTX driver modules can be easily replaced in the field with protected driver modules, creating a protected pair unit when needed. The DTerminator 2 PTP protected terminal block contains driver modules with environmentally sealed circuit protectors. Each connection is protected by a three-element gas discharge tube.

Product Information Tyco Electronics' unique IIDC (inverted insulation displacement connector) accommodates - 24 AWG (1.02 -.51 mm) wires without requiring wire stripping or special tools. Patented GelGuard gel sealing technology provides superior performance and is specifically formulated for environmentally demanding terminal applications. An audible click indicates when the driver is properly seated for wire insertion. A single bolt terminates each pair into a driver module through which the connection is visible.

A single drop wire port further simplifies installation by eliminating the chance of placing the drop wire in the wrong port. Gel-protected test ports in the top of each driver module facilitate fast, easy testing with standard test clips. DTerminator 2 products are available in a wide range of pair counts. Protected and unprotected blocks of the same pair count are the same size but different colors. See ordering information below. DTerminator 2 terminals are UL Listed for Indoor/Outdoor use when installed in a suitably approved UL Listed enclosure including units mounted on or inside a building. Terminal blocks mounted in a restricted access area inside a building do not require an enclosure.

Blocks are available in an upgradable design, allowing for protection to be added when needed on a pair by pair basis, saving unnecessary initial cost. Driver modules can be re-entered and re-sealed many times, even after prolonged exposure to temperature extremes. Special circuit markers are available for easy identification of special lines. Compliant with Telcordia specification TR-NWT-000975 and TR-NWT-001305.

DT2-PTB-XX XXXXF - XDX - XX Model B - Unprotected X - Upgradable P - Protected Pair Count and 50-pair Cable Type AS - Aircore shielded AU - Aircore unshielded FS - Filled shielded FU - Filled unshielded VT - PVC tip-tracer Cable Length - 4 ft. (AU/VT only) - 6 ft. (FU only) - 12 ft. - 25 ft. Block Printing - No printed numbers 1 - T/R 2 - A/B Driver Type 265-600V 24 AWG, blue 2 - VS/FS 265-600V 24 AWG, lt. blue 3 - Unprotected 24 AWG, white

Note: Fail Safe only for OSP Applications. Fail Safe/Vent Safe for primary protection. Description Key is to assist with interpreting product configuration. Not all configurations are available. Contact Customer Service regarding availability.

Drop Entry R - Right L - Left B - Both (Available in 25 and 50 pair only configurations)
