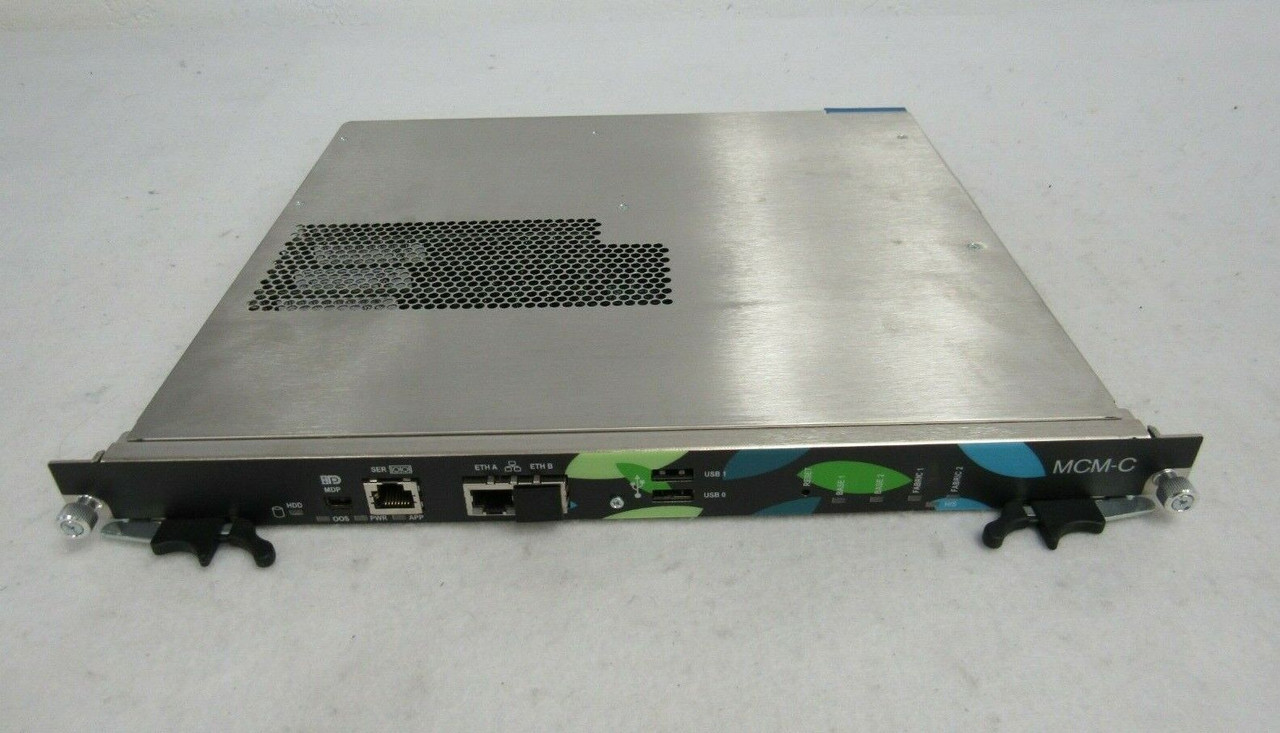

Radisys ATCA-4600 Dual Intel Xeon "Sandy Bridge" ATCA Compute

May show signs of normal wear and tear. Pulled from a clean working environment.

Description:

The ATCA-4600 is a 9th generation single board compute module from Radisys. It is a high performance, single slot ATCA blade based on either the dual socket E5-2448L Intel Xeon processor or the E5-2428L Intel Xeon processor.

ATCA-4600 Sandy Bridge ATCA compute module is ideal for control plane and server functions for LTE wireless infrastructure, Deep Packet Inspection (DPI), IPTV, IP Multimedia Subsystem (IMS). The ATCA-4600 provides 40-Gigabit fabric connectivity, 12 DDR3 DIMM sockets, a mezzanine slot, and several optional RTM offerings with additional storage and network interface choices.

High Performance / Low Cost
The dual six-core E5-2448L processor provides higher performance at a lower cost per cycle than the previous generation of single quad-core L5518 processor ATCA modules. Support for Hyper-threading in this dual processor SMP design allows the 12 cores to process up to 24 threads simultaneously, so to the OS the processor appears as 24 separate cores.

The ATCA-4600 Sandy Bridge ATCA compute module integrated memory controller significant reduces memory latency. Support for 12 DDR3 VLP RDIMMs allows memory density of up to 96GB, while providing a cost-effective solution for applications that have lower density memory requirements.

Features:

* Single slot PICMG 3.0/3.1 (Option 1, 9) compliant
* Dual Intel Xeon processors

** 6-core E5-2428L
** Integrated Memory Controller
** Support for Hyper-Threading

* Dual 40Gb/10Gb/1Gb Ethernet Fabric Interface

** Dual 1Gb Ethernet Base Interface

* 12 DDR3 VLP RDIMM Sockets

** Support for up to 96GB Memory

* Support for Multiple storage options

** Optional Dual User Flash of up to 16GB each
** Supports dual SSD MXM cards
** Up to two optional RTMs support an additional drive and provide HW RAID (0/1) and provides 2 SAS ports
** Supports iSCSI on base & fabric

* Mezzanine Site

** MXM card

* Based on EFI Firmware

** Pre-OS Shell
** Ability for customer to create unique EFI applications

* OS Support

** Wind River 4.0, 64-bit
** Red Hat Enterprise Linux 6.1, 64-bit
** MontaVista CGE 6.0, 64-bit

Specifications:

PHYSICAL Dimensions 8Ux6HPx280mm ATCA, single slot
Compliance PICMG 3.0 Revision 3.0, PICMG 3.1 Revision 1.0 (Revision 2.0 planned when published)
PROCESSOR SYSTEM CPU Dual Intel Xeon E5-2448L (8-core with Hyper-threading) or E5-2428L (6-core with HT)
Cache 15MB (E5-2428L)
Chipset Intel C604
QPI Speed Up to 8.0 GT/s
MEMORY Technology Registered ECC DDR3 1600MHz or 1333Hz
Capacity 96GB maximum
Sockets 12 240-pin VLP DIMM
ETHERNET FABRIC Fabric PICMG (3.1) 40GBASE-KR4, 10GBASE-KR, 10GBASE-KX4, 1000BASE-KX Option 1, 1-K, 1-KR, 9, 9-K, 9-KR
Controller Mellanox ConnectX-3 EN
BASIC FABRIC Interface Dual 10/100/1000BASE-T
Controller Intel i350
MEZZANINE SITE MXM Card
STORAGE Flash Optional Dual 16GB User Flash (32GB total)
HDD Dual SSD MXM (see RTM for additional options)
iSCSI Support for Base & Fabric
FRONT PANEL I/O 2 USB 2.0 connectors, 2 1000BASE-T Ethernet connectors (RJ-45), 1 RS-232 Serial port connection (RJ-45)
LEDs Hot Swap (Blue), Red or Amber Out of Service (ATCA "LED 1"), Green/Amber Power Good (ATCA "LED 2"), Amber Application defined, Activity and status indicators for dual Ethernet (RJ-45)
Mechanical Hot Swap extraction ejector, Reset Button
OPTIONAL RTMS A5400-CPU-RTM Supports an Optional 1 SAS/SATA SFF HDD, 1 USB 2.0 Connector, 2 SFP Modules (Not Included), 2 SAS Ports, 1 RS-232 Serial port connection (RJ-45)
A5401-CPU-RTM-FC Supports an Optional 1 SAS/SATA SFF HDD, 1 USB 2.0 Connector, 2 SAS Ports, 1 RS-232 Serial port connection (RJ-45), two 8 Gbps Fibre Channel
A5402-CPU-RTM-SAS Supports an Optional 2 SAS/SATA SFF HDD, 1 USB 2.0 Connector, 2 x4 mini HDD Gen 2 SAS Ports, 1 RS-232 Serial port connection (RJ-45)
A5406-CPU-RTM-FC10G Supports an Optional 1 SAS/SATA SFF HDD, 1 USB 2.0 Connector, 2 1GbE SFP Modules (Not Included), 2 10GbE SFP+ Modules (Not Included), 2 SAS Ports, 1 RS-232 Serial port connection (RJ-45), two 8 Gbps Fibre Channel
SOFTWARE Operating System (standard) Wind River 4.0 (64-bit) Red Hat Enterprise Linux 6.1 (64-bit) MontaVista CGE 6.0 (64-bit)
POWER ATCA-4600 200-225W Max depending on configuration
ENVIRONMENTAL Temp (operating) Continuous: +5°C to +40°C, Short Term: -5°C to +55°C
Temp (storage) -40°C to +70°C
Vibration (operating) 0.1g, 5 to 100 Hz and back, 0.1 octave/min sine sweep 3
Rel Humidity (operating) Continuous: 5% to 85% RH non-condensing, Short Term: 5% to 90% RH non-condensing at +30°C
Rel Humidity (storage) Continuous: 5% to 90% RH non-condensing at +40°C, Short Term: 5% to 95% RH non-condensing at +40°C
REGULATORY Safety UL/EN/IEC 60950-1, CSA 22.2
EMC FCC Part 15, Class A, EN 550022: 1998, Class A 60950
