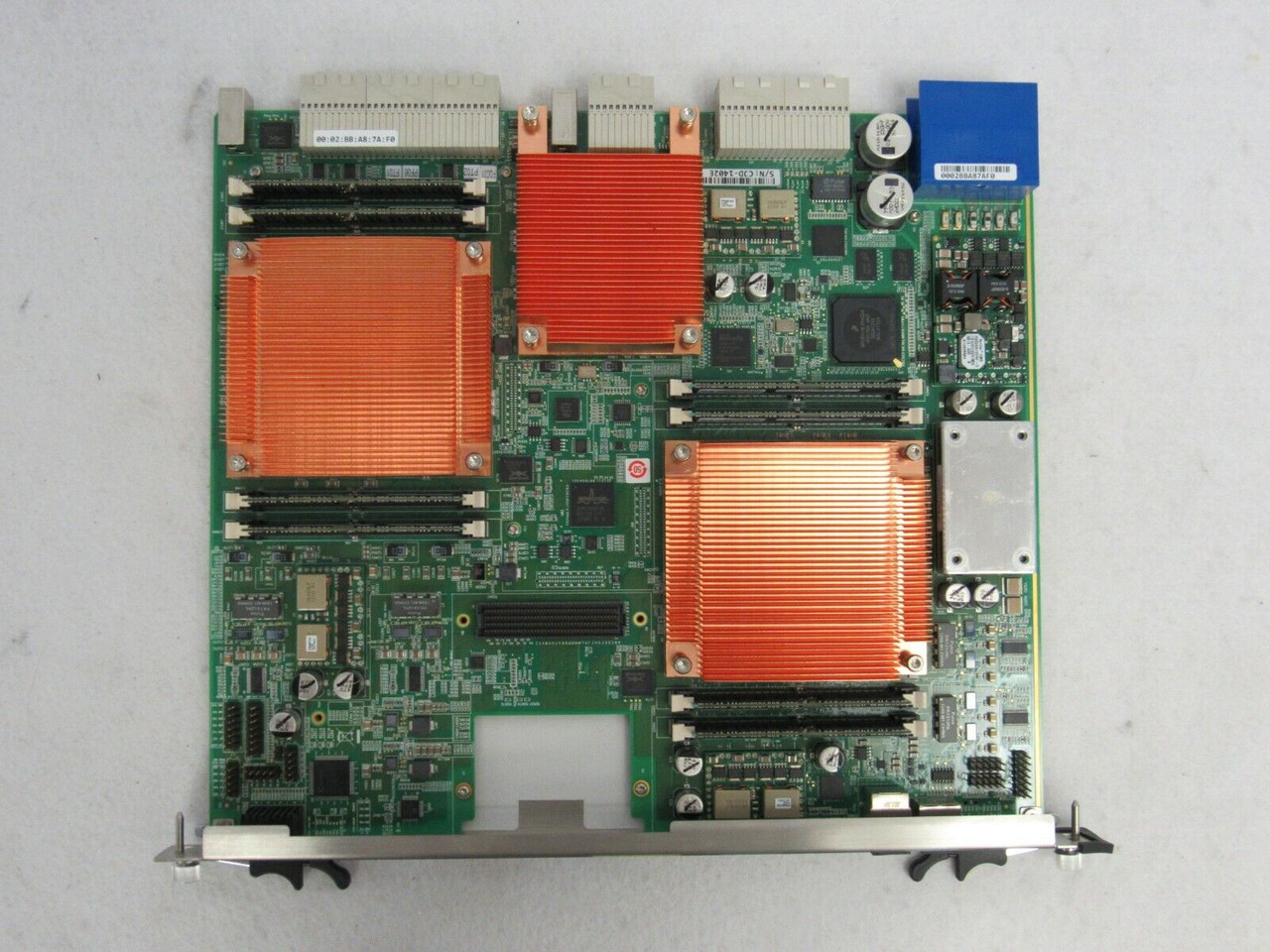

Radisys ATCA-PP81 Dual Broadcom XLP 40G DPI Packet Processing Blade

Item was pulled from a clean working environment. May show signs of normal wear and tear.

Features:


Processing

* Dual Broadcom XLP832 multi-core packet processor
* CPU includes security engines, network accelerators and fast messaging network

Memory

* Up to 32GB per CPU (64GB per board)
* On-board Flash memory

Connectivity

* Base interface compliant to PICMG 3.0 (dual redundant 1GbE)
* Fabric interface compliant to PICMG 10G and 40G standards
* Optional hub switch capability in 6-slot chassis
* Up to 160Gbps external I/O

Hardware Acceleration

* XLP832 security engines
* NLS2008 Regular Expression Engine (RTM option)
* Optional EZchip NP4/NP4L co-processor for traffic management, ingress/egress processing

Software Support

* Broadcom Linux & Fast Path SDK, Wind River PNE LE 4.0
* FlowEngine DPI Framework
* NLS2008 RegEx SDK
* 6WINDGate software framework
* Future Trillium fast path modules

Specifications:

CPU / Memory

* Dual Broadcom XLP832 packet processors
* 8 Multi-threaded MIPS cores per processor
* Integrated security engine including Snow3G, Kasumi, IPsec, etc.
* Up to 32GB memory per CPU
* Dual redundant 1GbE base interface
* 10G & 40G Fabric interfaces
* Front & rear I/O up to 160Gbps (total)
* RJ45 Management Port
* RJ45 Console Port

Software

* Wind River PNE LE Linux 4.3
*
Broadcom XLP SDK
- Linux distribution with hyperexec
- Fast path executive
- Debug & development tools
- Example software and benchmark code
*
Application software
- FlowEngine DPI Framework
- Trillium fast path control and bearer plane protocols (e.g., SCTP, eGTP, etc.)
- Network and routing protocols including fast path and slow path functions

Mechanical & Environmental Compliance

* Standard 8U single-slot (6 HP) front board and RTM
*
Operating environment:
- Temperature: 0C to +55C
- Humidity: 5%-80% (non-condensing)
- Vibration: 20Hz-2KHz random multi-axis, 0.5G RMS
*
Storage/transportation environment:
- Temperature: -40C to +85C
- Humidity: 5%-95% (non-condensing)
- Vibration: 20Hz-2KHz random multi-axis, 6G RMS
* Assembly components meet UL 94-V0 flammability rating

Rear Transition Modules (RTM)

* 10GbE SFP+ (8x)
* 10GbE SFP+ (8x) with Broadcom Regex Engine

Regulatory Compliance

* UL 60950-1 Safety of Information Technology Equipment
* IEC/EN 60950-1 Safety of Information Technology Equipment
* FCC Part 15, Subpart B, Class A
* CE Mark - Meets EMC directive 89/336/EEC
* Designed for Telcordia NEBS GR-63-CORE and GR-1089-CORE Level 3
* RoHS 6 / 6 Compliant
